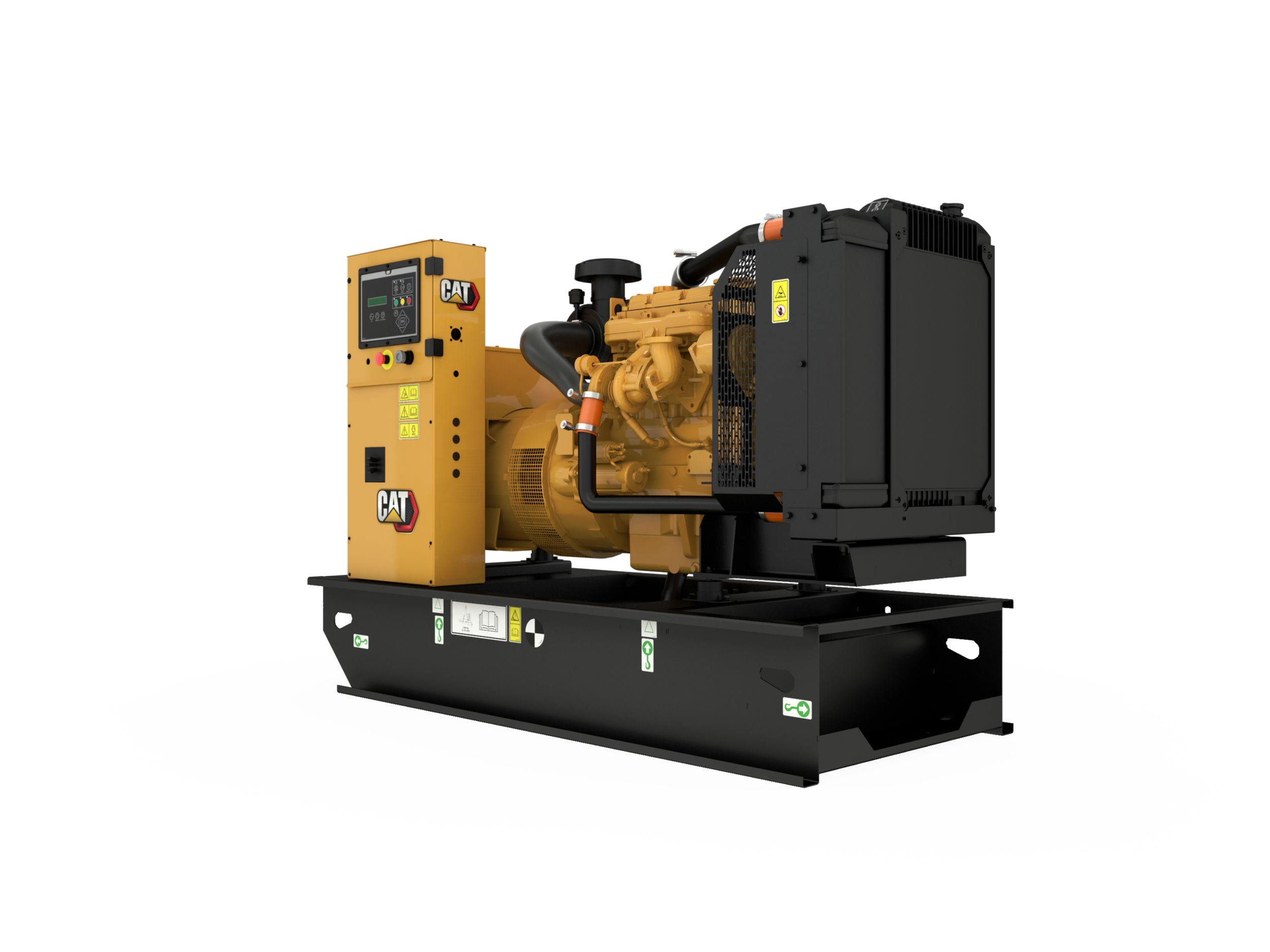

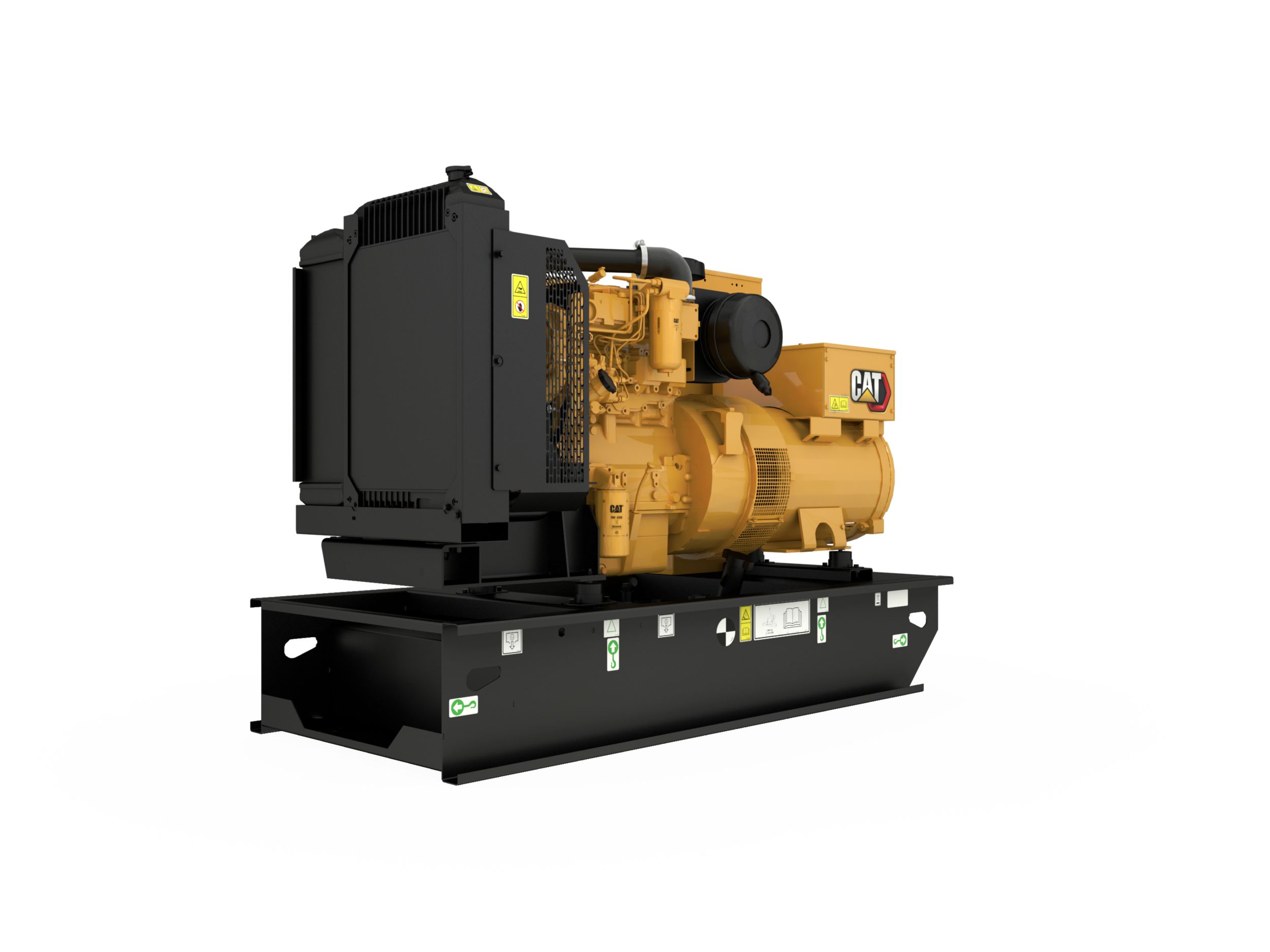

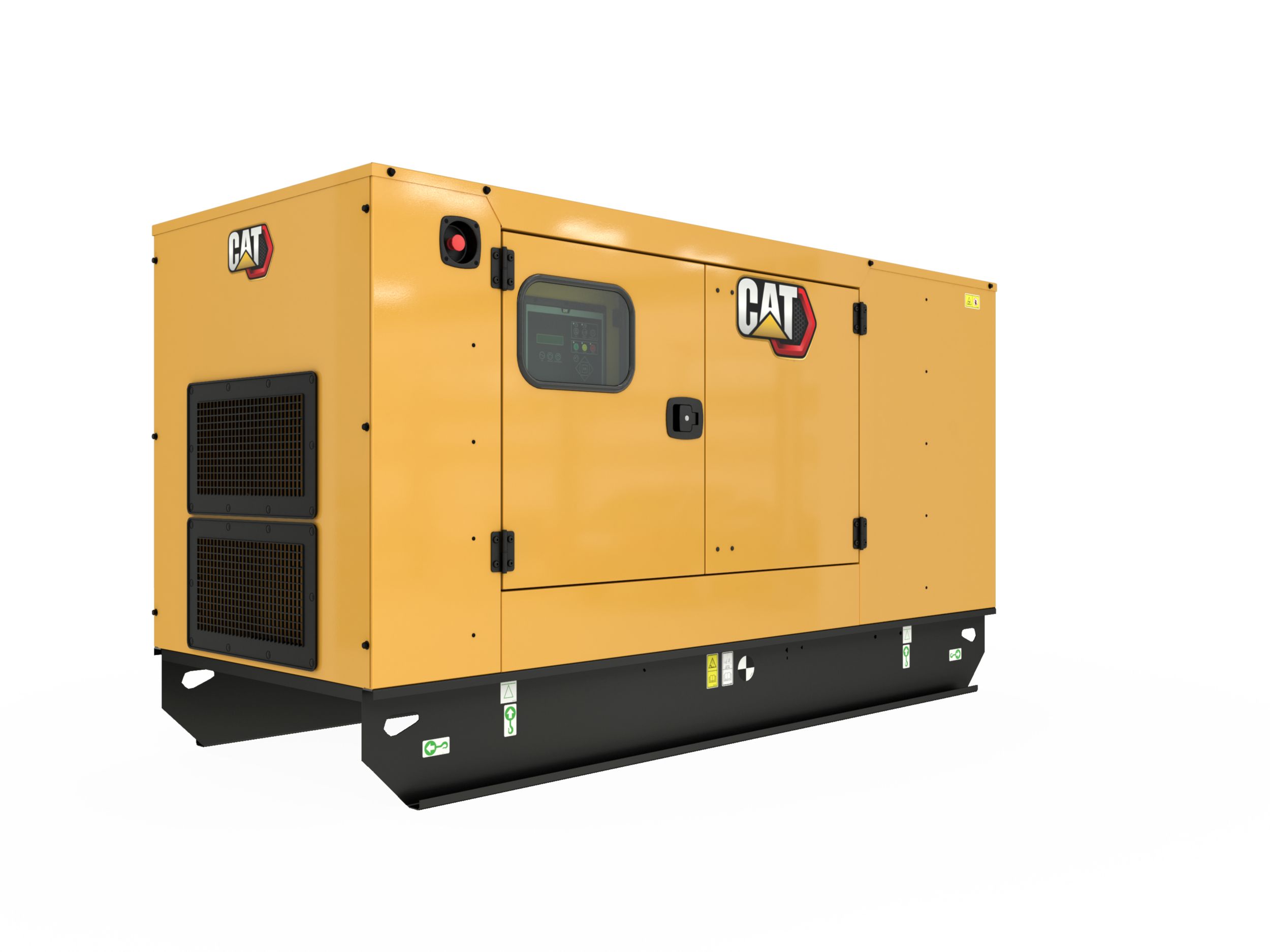

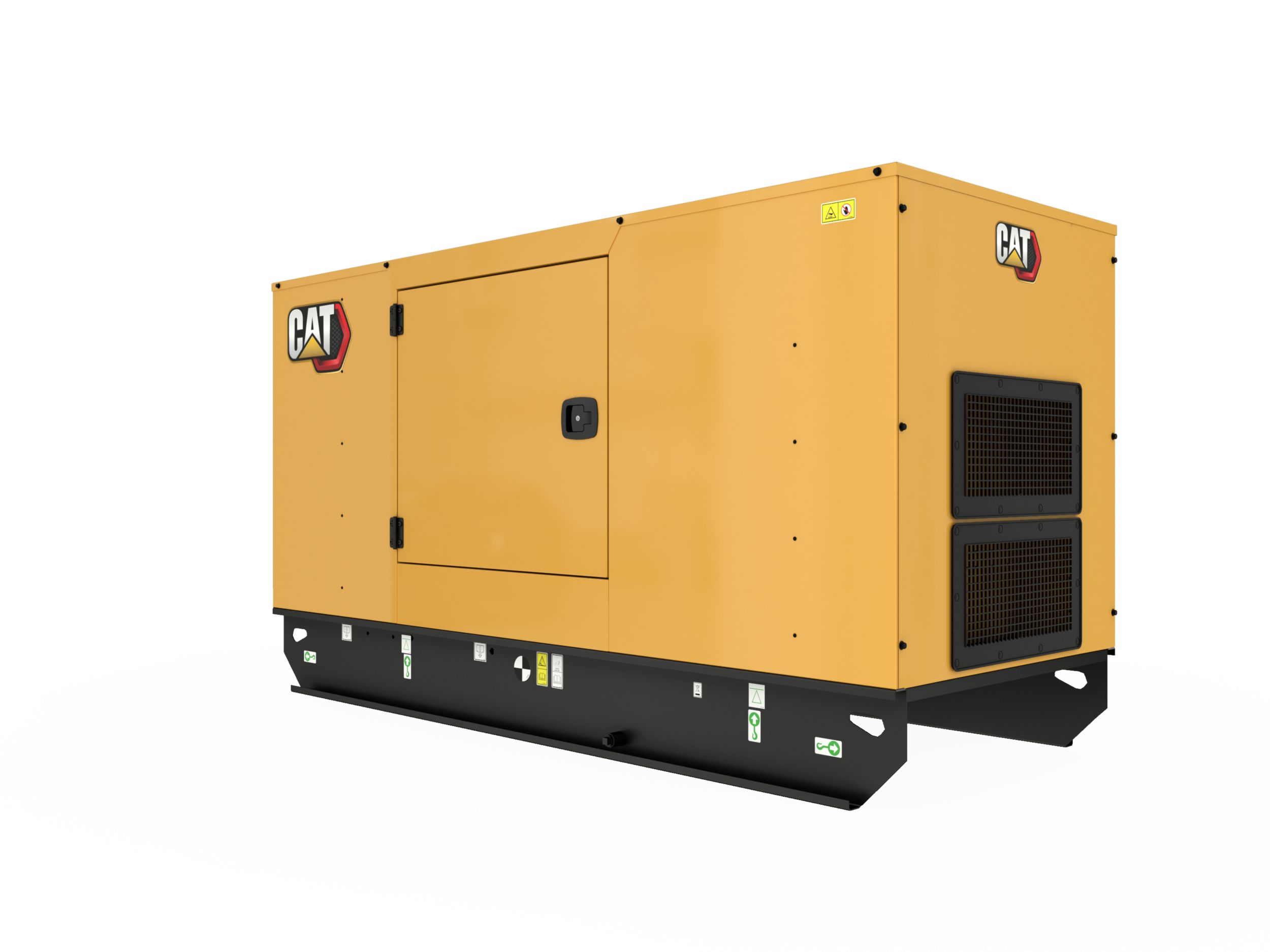

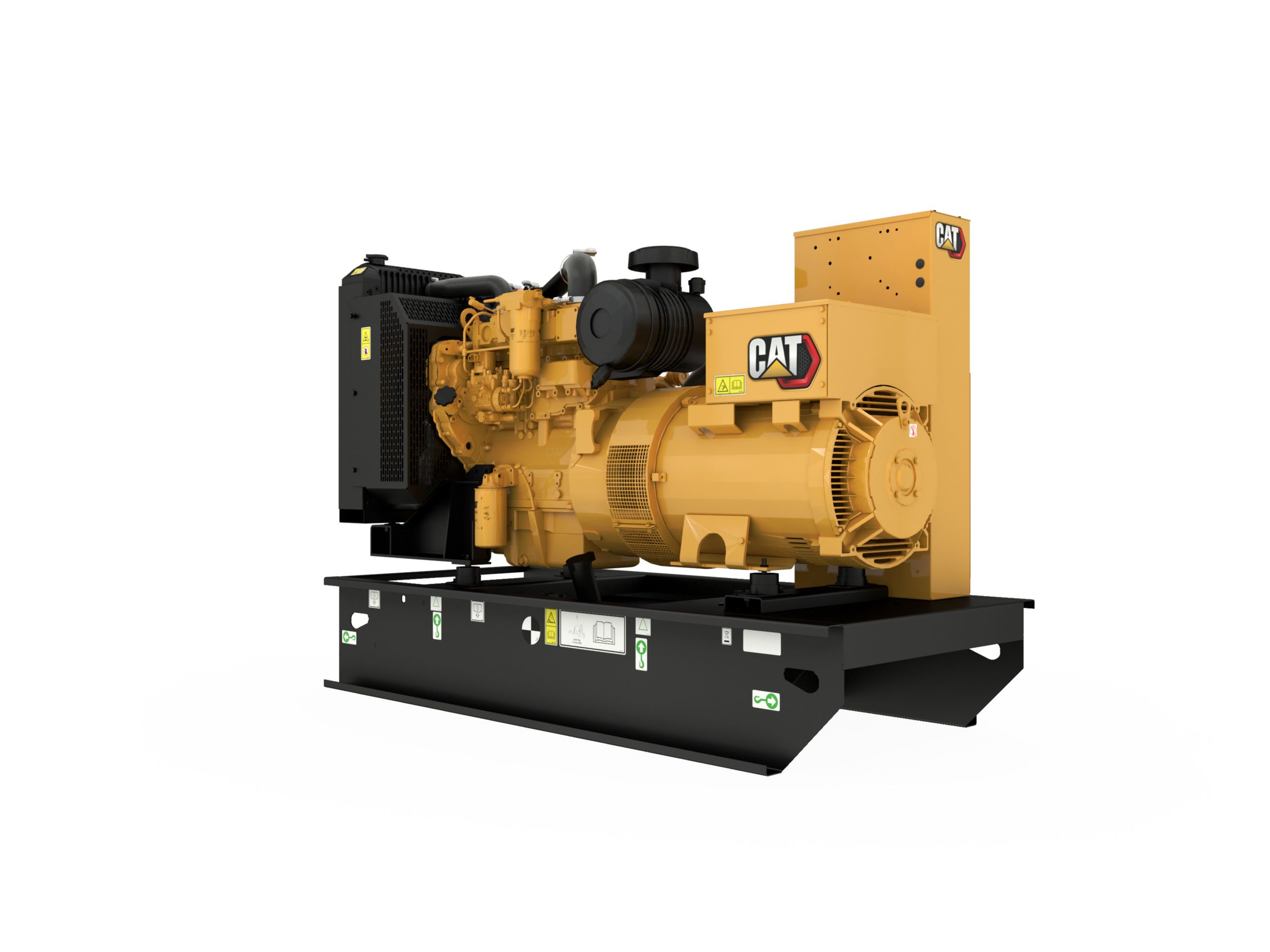

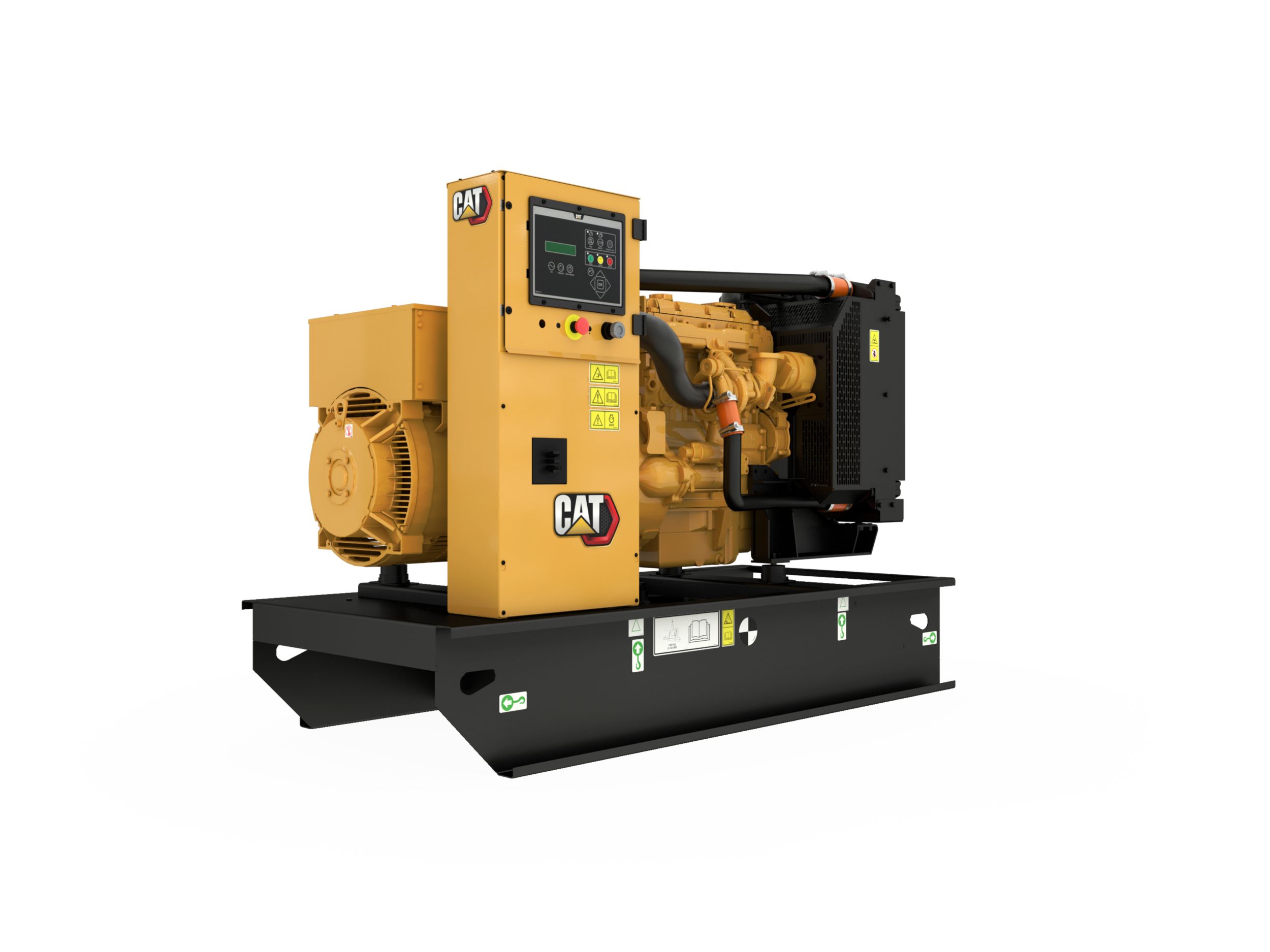

Cat C4.4 / DE110E3
Power generator
- Eriti populaarses võimsusvahemikus 400–700 kVA pakub see tootesari tõelisi pikamaajooksjaid, kelle kasutamine tasub end alati ära.
- Pole ime, et murranguliste Cat ACERT mootorite ja Cat generaatoritega Cat generaatorid garanteerivad suurepärase väärtuse säilimise ja saavutavad eriti kõrged edasimüügihinnad.
- Nendes võimsusklassides kasutatakse Cati uusi ACERT mootoreid.
- Selle tehnoloogia abil ületavad C15 ja C18 tüübid lubatud heitkoguste piirnorme, tegemata järeleandmisi töökindluse, jõudluse, kasutusea ja hoolduse osas.
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
M-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Fully prototype tested with certified torsional vibration analysis available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Engine Specifications
| Engine Model | Cat® C4.4 |
|---|---|
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 3.3 l |
| Compression Ratio | 18.3:1 |
| Aspiration | Turbocharged |
| Fuel System | Inline |
| Governor Type | Electronic |
Generator Set Dimensions
| Length - Maximum | 2089 mm |
|---|---|
| Width - Maximum | 1120 mm |
| Height - Maximum | 1375 mm |
| Dry Weight - Genset (maximum) | 1129 kg |
Generator Set Specifications
| Minimum Rating | 100.0 kVA |
|---|---|
| Maximum Rating | 110.0 kVA |
| Emissions/Fuel Strategy | EU Stage II R96 |
| Voltage | 220 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby, Prime |
