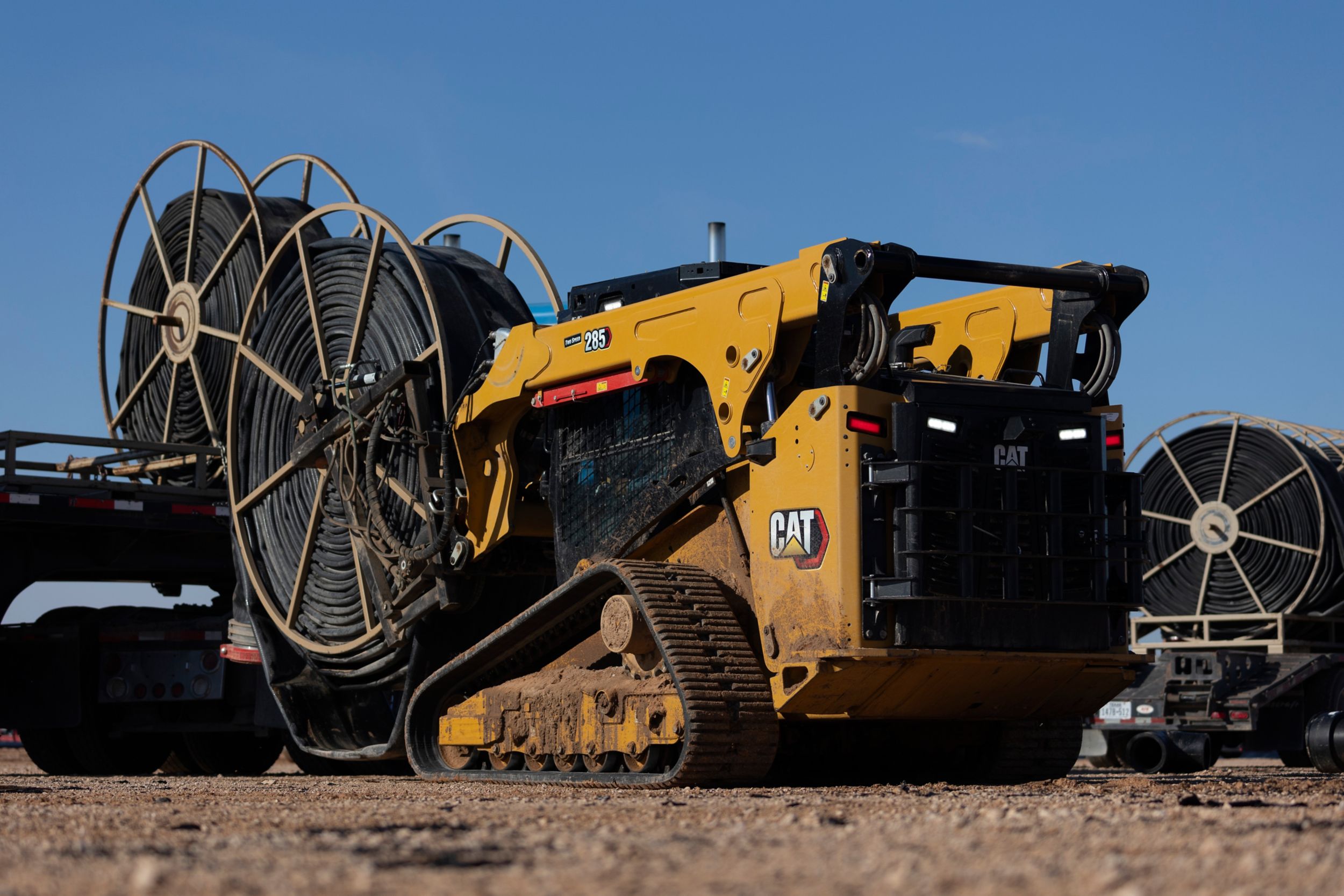

Cat 285-05
Tracked Skid-Steer Loader
Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 285 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.
Available ventilated and heated high-back air ride seat and seat mounted adjustable joystick controls deliver industry-leading operator comfort.
The high-performance power train provides maximum performance and production capability along with standard two speed travel. The optional Speed Sensitive Ride Control system improves material retention and operator comfort when working on rough terrain.
Three levels of auxiliary hydraulic performance are available - Standard Flow, High Flow, and High Flow XPS. Standard flow for attachments that require a base level of auxiliary flow and horsepower, High Flow boosts the auxiliary flow for applications that demand additional hydraulic flow for increased attachment performance, and the High Flow XPS hydraulic system provides maximum auxiliary hydraulic performance by delivering additional flow and additional pressure for the most demanding attachments and applications
The electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range. It provides high torque for increased working performance, no matter the application.
The standard E-bar undercarriage provides a hybrid undercarriage solution delivering the benefits of a rigid style undercarriage design when lifting heavy loads or when using heavy attachments while also providing the benefits of an oscillating undercarriage design when encountering rough terrain or obstacles.
The Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.
Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.
Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Make your Cat Compact Track Loader the most versatile machine on the job site with the wide range of Cat attachments.
| ROPS | ISO 3471:2008 |
|---|---|
| FOPS | ISO 3449:2005 Level I |
| FOPS Level II | ISO 3449:2005 Level II (Optional) |
| Bucket Pin Height - Carry Position | 209 mm |
|---|---|
| Bucket Pin Height - Maximum Lift | 3724 mm |
| Bucket Pin Reach - Maximum Lift | 413 mm |
| Clearance at Maximum Lift and Dump | 3039 mm |
| Departure Angle | 26° |
| Ground Clearance | 280 mm |
| Height - Top of Cab | 2230 mm |
| Length - Track on Ground | 1830 mm |
| Length - With Bucket on Ground | 3998 mm |
| Length - Without Bucket | 3360 mm |
| Maximum Overall Height | 4520 mm |
| Maximum Reach - With Arms Parallel to Ground | 1285 mm |
| Overall Length - Track | 2180 mm |
| Rack Back Angle - Maximum Height | 89° |
| Reach at Maximum Lift/Dump | 882 mm |
| Roll Back Angle | 27.2° |
| Turning Radius from Center - Bucket (racked) | 2400 mm |
| Turning Radius from Center - Coupler | 1578 mm |
| Turning Radius from Center - Machine Rear | 1887 mm |
| Vehicle Width (450 mm/17.7 in tracks) | 2078 mm |
| Maximum Dump Angle | 40.5° |
| Gross Power - SAE J1995:2014 | 82 kW |
|---|---|
| Bore | 120 mm |
| Displacement | 3.6 l |
| Net Power - ISO 9249 | 81 kW |
| Net Power - SAE 1349 | 111 kW |
| Peak Torque - 1,500 rpm - SAE J1995 | 501 N·m |
| Engine Model | Cat® C3.6 TA (turbocharged after-cooled) |
| Stroke | 120 mm |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 60.2 kW |
|---|---|
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 129 L/min |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 28000 kPa |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 34.6 kW |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 86 L/min |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 24130 kPa |
| Rated Operating Capacities - 35% Tipping Load | 2023 kg |
|---|---|
| Breakout Force - Lift Cylinder | 3960 kg |
| Breakout Force - Tilt Cylinder | 6314 kg |
| Ground Contact Area - With 450 mm/17.7 in Track | 1.76 m² |
| Ground Pressure - With 450 mm/17.7 in Track | 34.3 kPa |
| Rated Operating Capacities - 50% Tipping Load | 2891 kg |
| Tipping Load | 5781 kg |
| Travel Speed - Forward or Reverse - One Speed | 7.8 km/h |
|---|---|
| Travel Speed - Forward or Reverse - Two Speed | 12.4 km/h |
| Cooling System | 17.5 l |
|---|---|
| Engine Crankcase | 9 l |
| Fuel Tank | 136.1 l |
| Hydraulic System | 41 l |
| Hydraulic Tank | 26 l |
| Diesel Exhaust Fluid (DEF) Tank | 11 l |
| Operating Weight | 6122 kg |
|---|---|
| Counterweight Adds to Operating Weight | 194 kg |
| Counterweight Adds to Operating Weight - ROC (35%) | 134 kg |
| Counterweight Adds to Operating Weight - Tip Load | 384 kg |
| Note | *Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted). |
