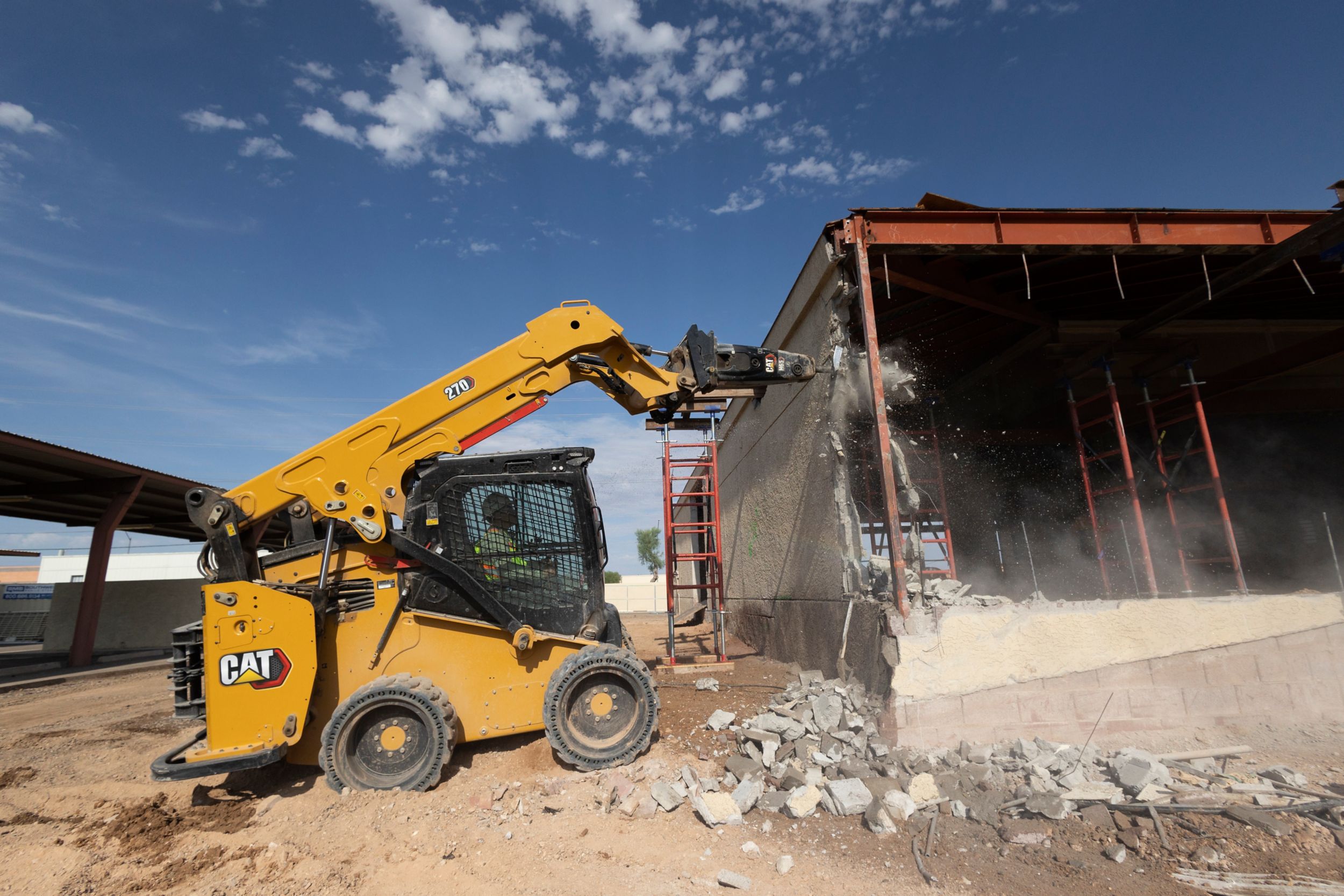

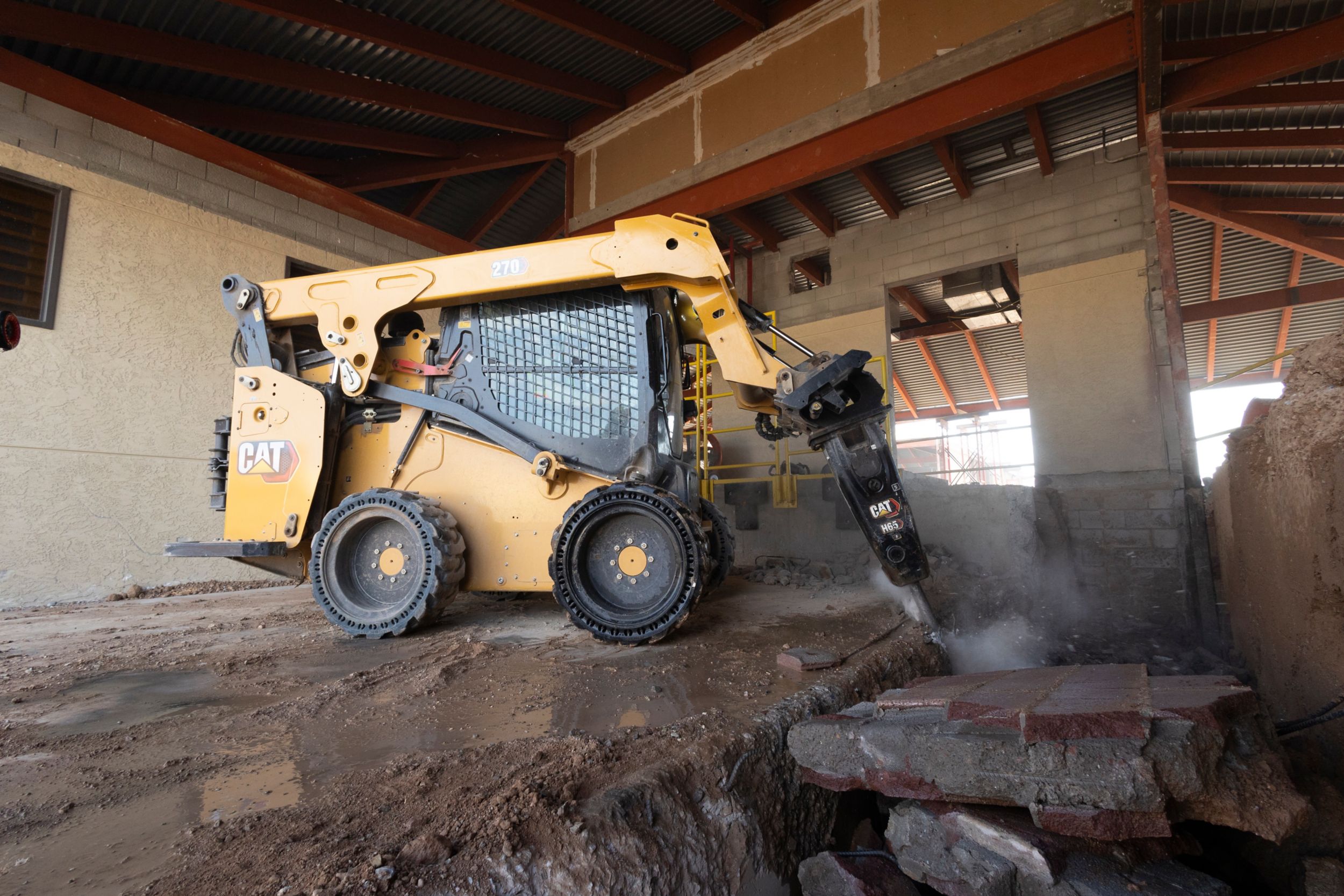

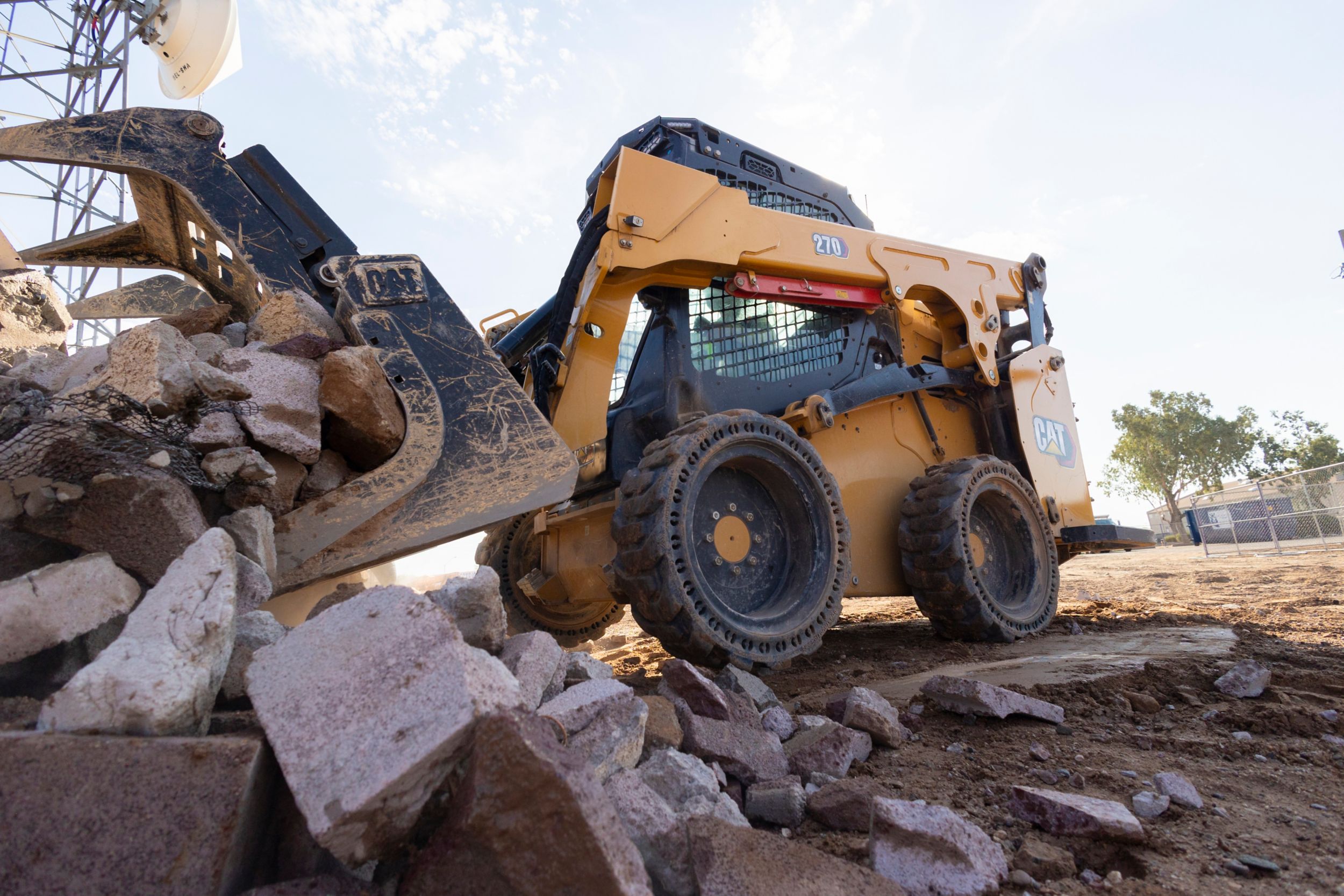

Cat 270
Skid Steer Loaders
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, optional two speed travel and an electronic hand/foot throttle with decel pedal capability.
Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 270 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.
Available ventilated and heated high-back air ride seat and seat-mounted adjustable joystick controls deliver superior operator comfort.
High Flow XPS auxiliary hydraulic system, delivering high flow and high pressure, is available for applications that demand maximum hydraulic work tool performance.
Electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range and provides high torque for increased working performance, no matter the application. The engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Speed sensitive ride control option improves operation on rough terrain, enabling better load retention, increased productivity, and greater operator comfort.
The 20.3 cm (8-inch) Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.
The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.
Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
The broad range of performance matched Cat Attachments makes the Cat Skid Steer Loader the most versatile machine on the job site.
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes. |
|---|
| ROPS | ISO 3471:2008 |
|---|---|
| FOPS | ISO 3449:2005 Level I |
| FOPS Level II | ISO 3449:2005 (Optional) |
| Wheel Base | 1386 mm |
|---|---|
| Height - Top of Cab | 2189 mm |
| Vehicle Width over Tires | 1830 mm |
| Ground Clearance | 202 mm |
| Departure Angle | 23.6° |
| Maximum Dump Angle | 43.5° |
| Maximum Overall Height | 4174 mm |
| Bucket Pin Reach - Maximum Lift | 320 mm |
| Turning Radius from Center - Machine Rear | 1897 mm |
| Turning Radius from Center - Coupler | 1471 mm |
| Reach - Maximum Lift/Dump | 786 mm |
| Turning Radius from Center - Bucket | 2228 mm |
| Bucket Pin Height - Maximum Lift | 3391 mm |
| Roll Back Angle | 28° |
| Maximum Reach - With Arms Parallel to Ground | 1220 mm |
| Clearance at Maximum Lift and Dump | 2676 mm |
| Length - Without Bucket | 3270 mm |
| Bucket Pin Height - Carry Position | 220 mm |
| Length - With Bucket on Ground | 3908 mm |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Rack Back Angle - Maximum Height | 88° |
| Gross Power - SAE J1995:2014 | 75 kW |
|---|---|
| Net Power - SAE 1349 | 74 kW |
| Displacement | 3.6 l |
| Stroke | 120 mm |
| Bore | 98 mm |
| Engine Model | Cat C3.6TA (turbocharged, aftercooled) |
| Note | Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator. |
| Net Power - ISO 9249 | 74 kW |
| Peak Torque - 1,600 rpm - SAE J1995 | 451 N·m |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow | 129 L/min |
|---|---|
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 34.6 kW |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure | 24130 kPa |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 86 L/min |
| Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated) | 60.2 kW |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 51.9 kW |
| Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow | 129 L/min |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 24130 kPa |
| Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure | 28000 kPa |
| Note (2) | *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
|---|---|
| Outside Cab** | 101 dB(A) |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Inside Cab* | 83 dB(A) |
| Note (3) | **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Rated Operating Capacity | 1614 kg |
|---|---|
| Tipping Load | 3227 kg |
| Breakout Force - Tilt Cylinder | 3750 kg |
| Breakout Force - Lift Cylinder | 2880 kg |
| Rated Operating Capacity with Optional Counterweight | 1786 kg |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Travel Speed - Forward or Reverse - Two Speed Option | 15.4 km/h |
|---|---|
| Travel Speed - Forward or Reverse - One Speed | 10.6 km/h |
| Cooling System | 17.5 l |
|---|---|
| Engine Crankcase | 9 l |
| Fuel Tank | 130.7 l |
| Hydraulic System | 41 l |
| Hydraulic Tank | 26 l |
| Diesel Exhaust Fluid (DEF) Tank | 11 l |
| Recyclability | 93% |
|---|
| Operating Weight | 4736 kg |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, 1883 mm (74 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, enclosed cab with glass door, mechanical suspension seat, advanced display, 1000 CCA battery, front counterweight, no optional counterweights and manual quick coupler (unless otherwise noted). |
