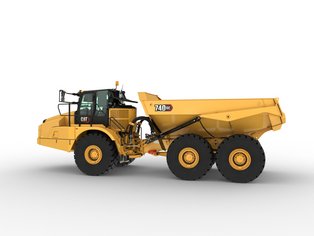

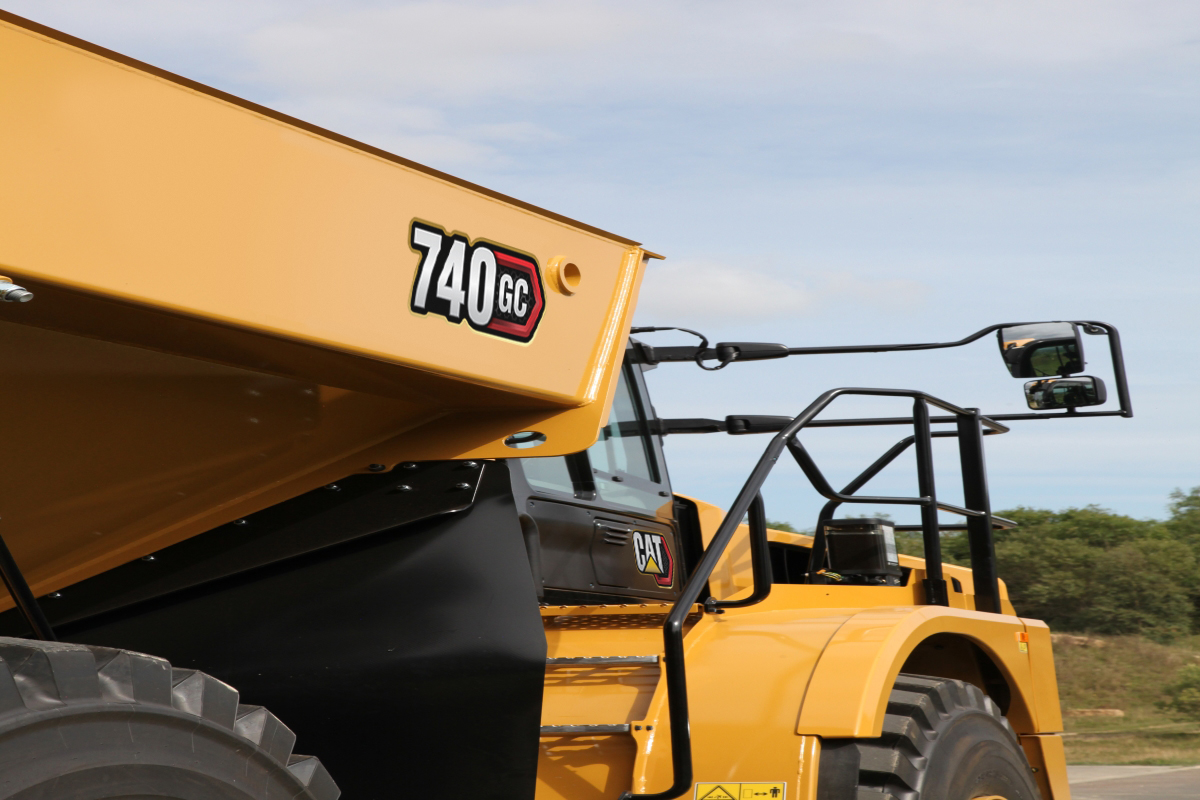

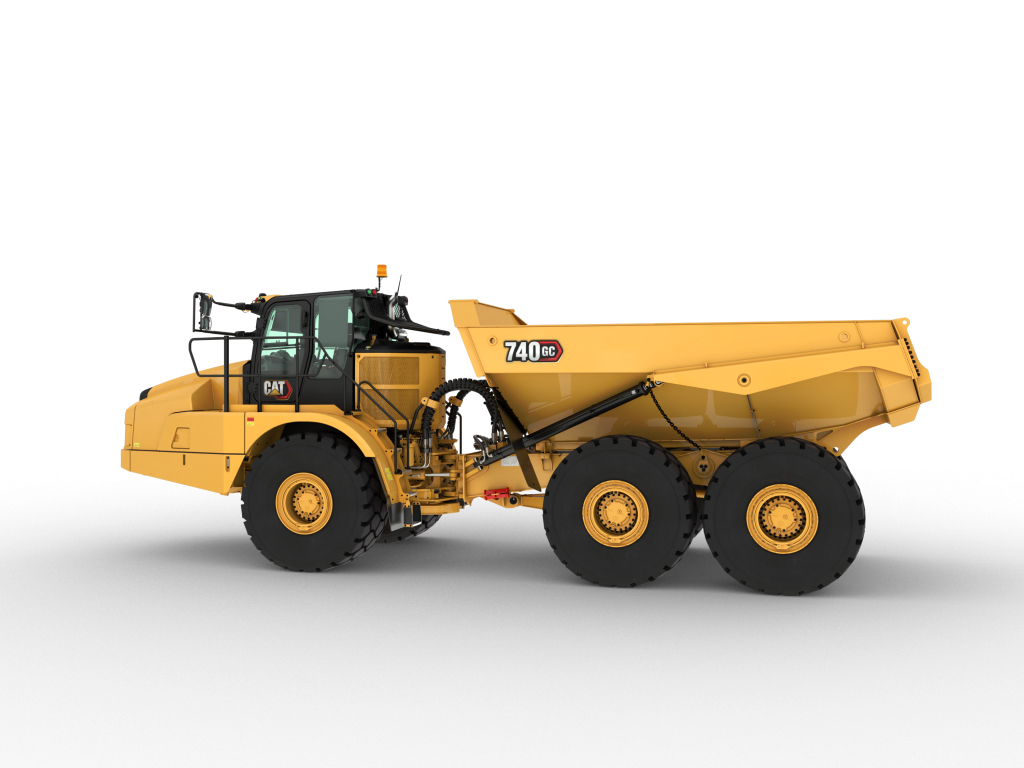

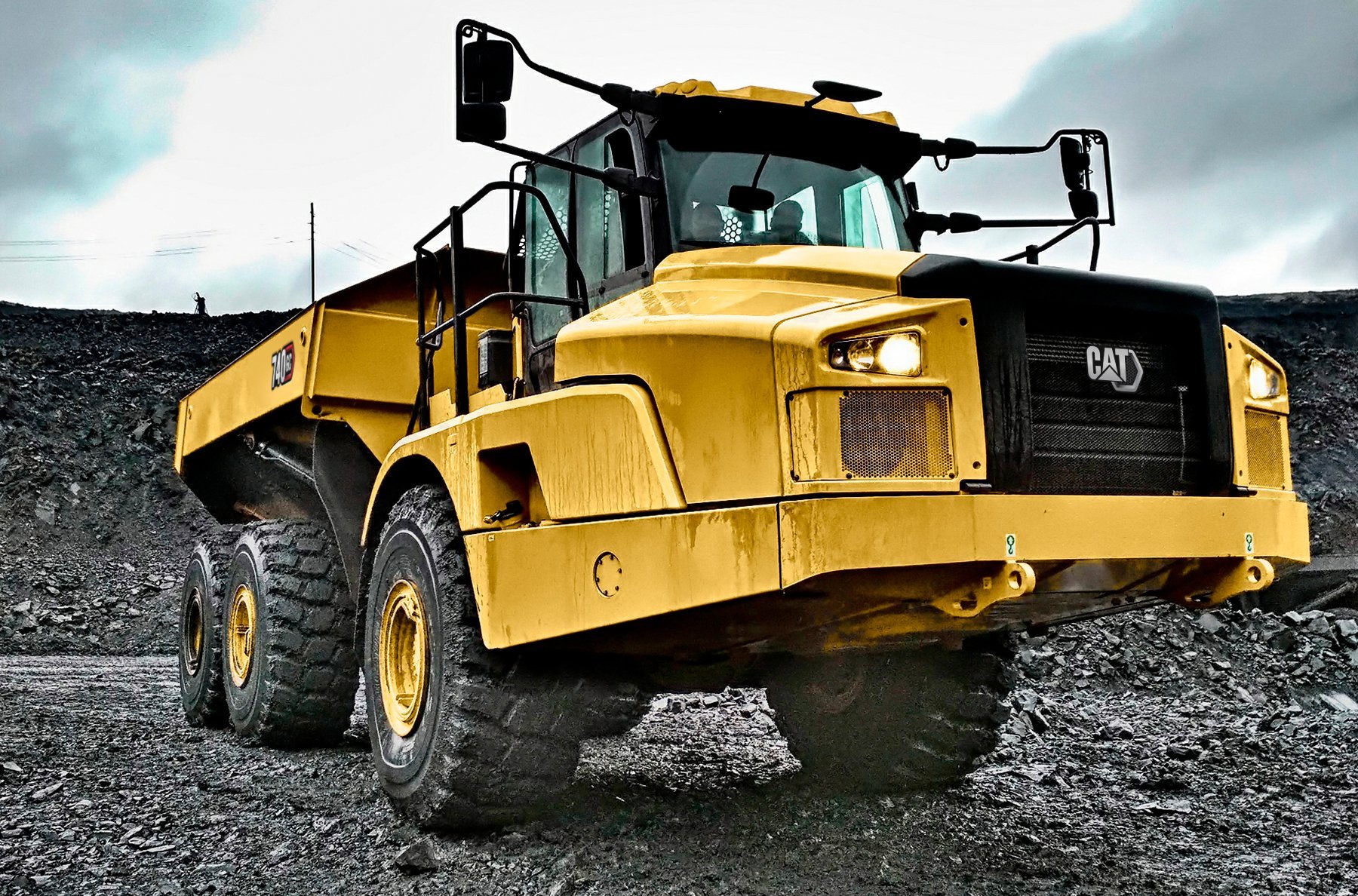

CAT 740 GC

OVERVIEW
—



The Cat® 740 GC features a world-class cab design, re-engineered using global operator feedback to advance comfort and ease of operation. Enhancements include new controls, transmission-protection features, hoist-assist system, advanced automatic traction control system, stability-assist machine rollover warning system, and a fuel saving ECO mode.



UP TO 50% LESS OPERATOR INPUT

A UNIQUELY COMBINED HOIST AND TRANSMISSION LEVER ALLOWS FOR EASY OPERATION WHICH SUITS A WIDE RANGE OF OPERATOR EXPERIENCE

IMPROVED OPERATOR COMFORT

QUIETER, MORE SPACIOUS CAB WITH IMPROVED VISIBILITY HELPS OPERATORS WORK MORE PRODUCTIVELY THROUGHOUT THE DAY

UNMATCHED SAFETY

SAFETY FEATURES HELP INCREASE OPERATOR CONFIDENCE BY PROVIDING A SAFER OPERATION - PREVENTION OF CAB AND BODY ROLL-OVER AND SAFER CAB ENTRY

PRODUCT SPECIFICATIONS FOR CAT 740 GC

—

Engine ModelCat® C15
Bore137 mm
Stroke171.5 mm
Displacement15.2 l
No Engine De-rating Below3050 m
Peak Engine Torque Speed1200 r/min
Peak Engine Torque Net (SAE J1349)2264 N·m
Net Power - SAE J1349327 kW
Engine Model - U.S. EPA Tier 4 Final/EU Stage VCat C15
Gross Power - SAE J1995337 kW
Net Power - ISO 14396333 kW
Peak Engine Torque Gross (SAE J1995)2320 N·m
EmissionsThe C15 engine meets Tier 4 Final and Stage V emission standards.
Note (4)Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions.
Note (2)The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard.
Note (3)The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Note (1)The references to Tier 4 Final/Stage V include U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards.
Note (5)DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
Rated Payload36.3 t
Heaped (SAE 2:1)22.7 m³
Struck17 m³
Tailgate Heaped SAE 2:124.4 m³
Tailgate Struck17.9 m³
Forward - 16.4 km/h
Forward - 28.5 km/h
Forward - 311.5 km/h
Forward - 414.8 km/h
Forward - 519.7 km/h
Forward - 624 km/h
Reverse - 16.8 km/h
Reverse - 215.7 km/h
Forward - 839.8 km/h
Forward - 733.1 km/h
Forward - 957.5 km/h
Interior Cab72 dB(A)
Note (2)Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments.
Note (1)The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed.
Center Axle - Empty6639 kg
Rear Axle - Empty6416 kg
Center Axle - Rated Load17087 kg
Front Axle - Empty19321 kg
Total - Empty32376 kg
Center Axle - Loaded23173 kg
Front Axle - Loaded22554 kg
Total - Rated Load36300 kg
Rear Axle - Rated Load17087 kg
Rear Axle - Loaded22949 kg
Front Axle - Rated Load2126 kg
Total - Loaded68676 kg
Fuel Tank550 l
Cooling System90 l
Engine Crankcase52 l
Axles - Each60 l
Brake Cooling Tank67 l
Transmission - OTG75 l
DEF Tank25 l
Steering/Hoist Hydraulic System140 l
Final Drive - Each5 l
Raise Time12 s
Lower Time12 s
Lock to Lock4.75 seconds @ 60 rpm
BrakesISO 3450 – 2011
Cab - FOPSISO 3449 Level II – 2005
Cab - ROPSISO 3471 – 2008
SteeringISO 5010 – 2007
TypeHigh strength Brinell HB450 wear resistant steel
Turning Dimensions - SAE Turning Radius7698 mm
Turning Dimensions - Clearance Radius8395 mm
Turning Dimensions - Aisle Width5595 mm
NoteDimensions are for machines equipped with 29.5 R25 tires.
Turning Dimensions - Steer Angle - Left/Right45°
Turning Dimensions - Inside Radius3960 mm
Side Plates11 mm
Base Plate13 mm
Front Plate7 mm
NoteAn optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374F and 352F Hydraulic Excavators; and Cat 972M, 966M, and 962M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.An optimum system match gives you a major productivity advantage. The 740 GC is an excellent match for the Cat 374F and 352F Hydraulic Excavators; and Cat 972M, 966M, and 962M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Wheel Loader: 972M - Passes3
Wheel Loader: 962M - Passes5
Wheel Loader: 966M - Passes4–5
Hydraulic Excavator: 374F - Passes3–4
Hydraulic Excavator: 352F - Passes5–6
