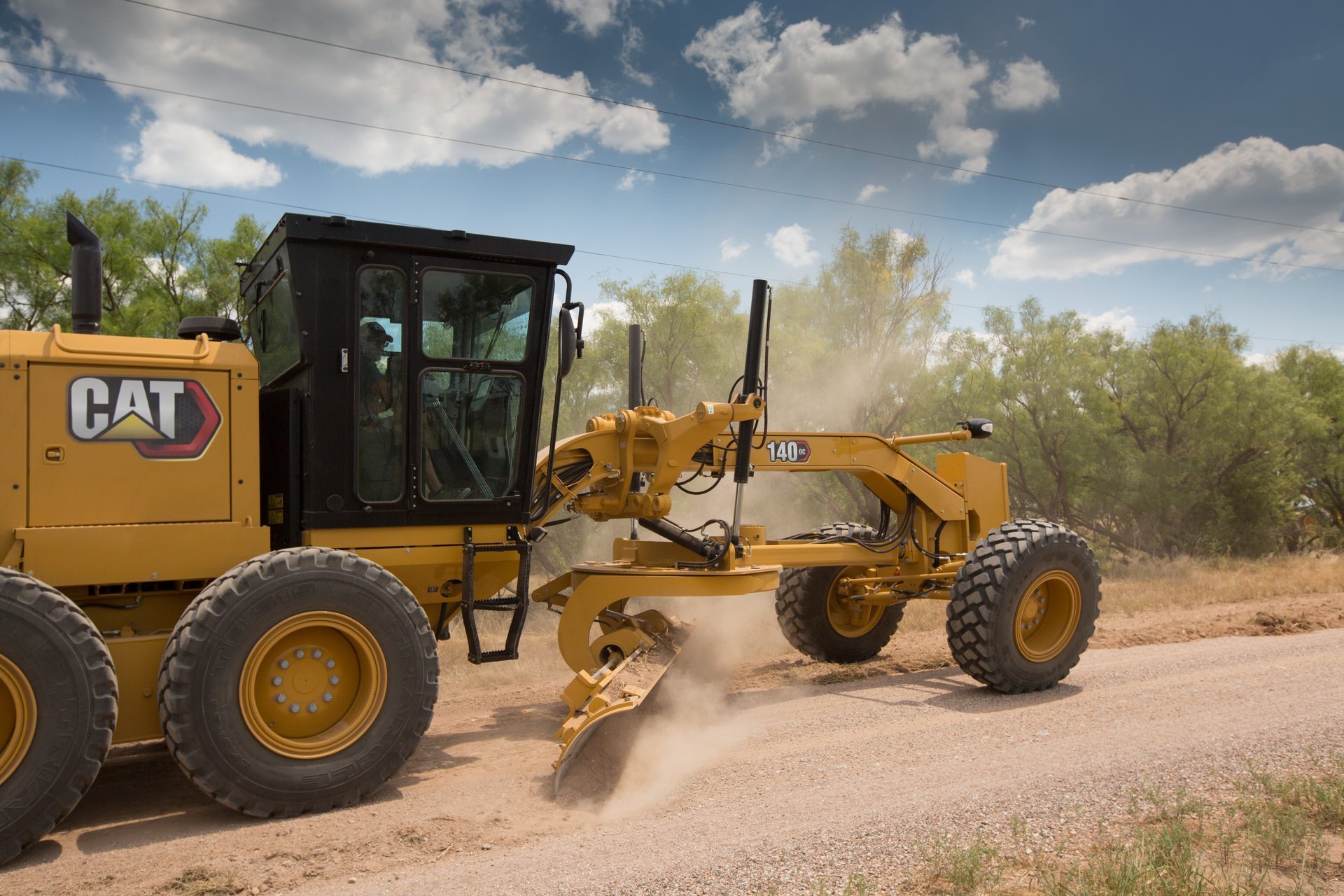

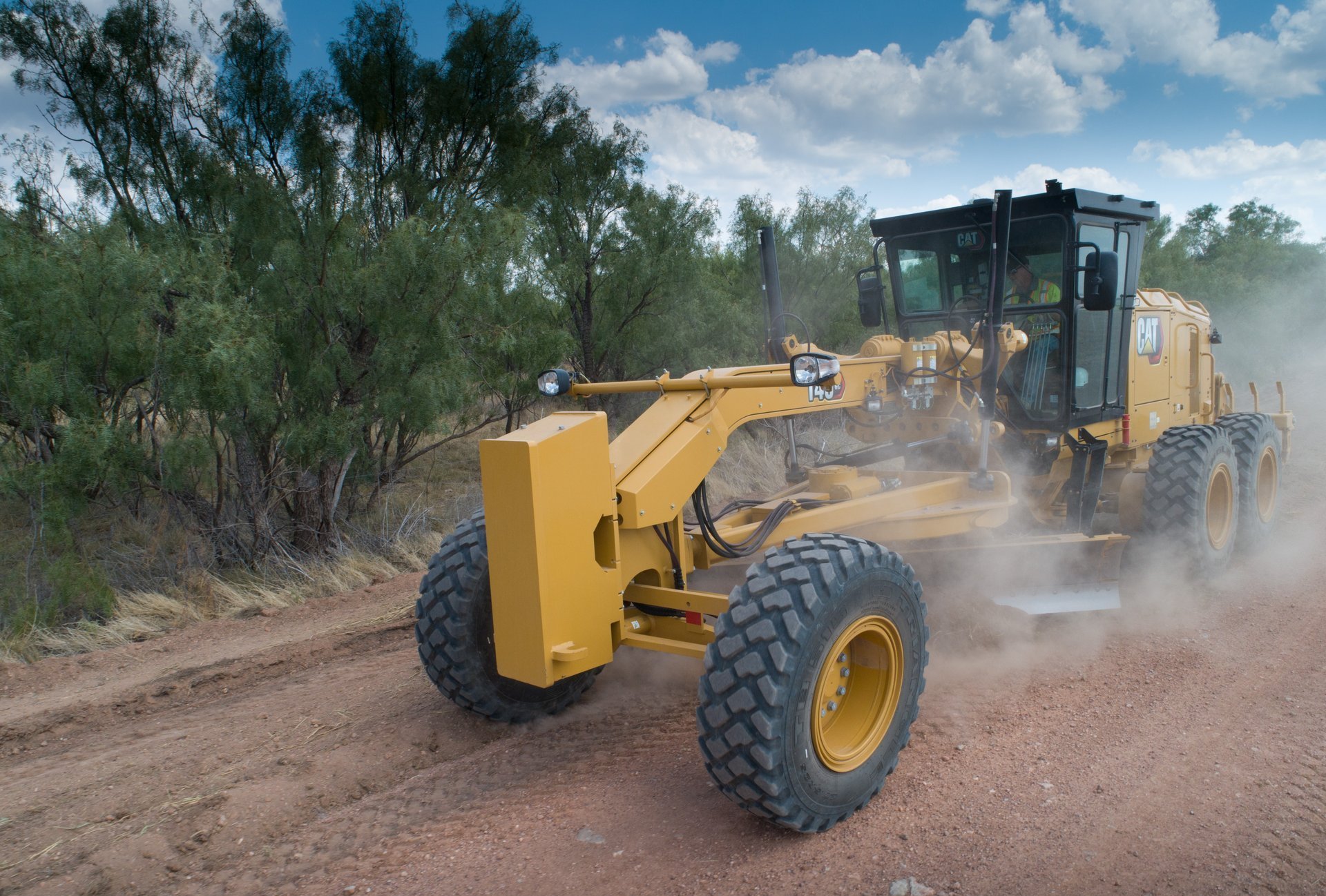

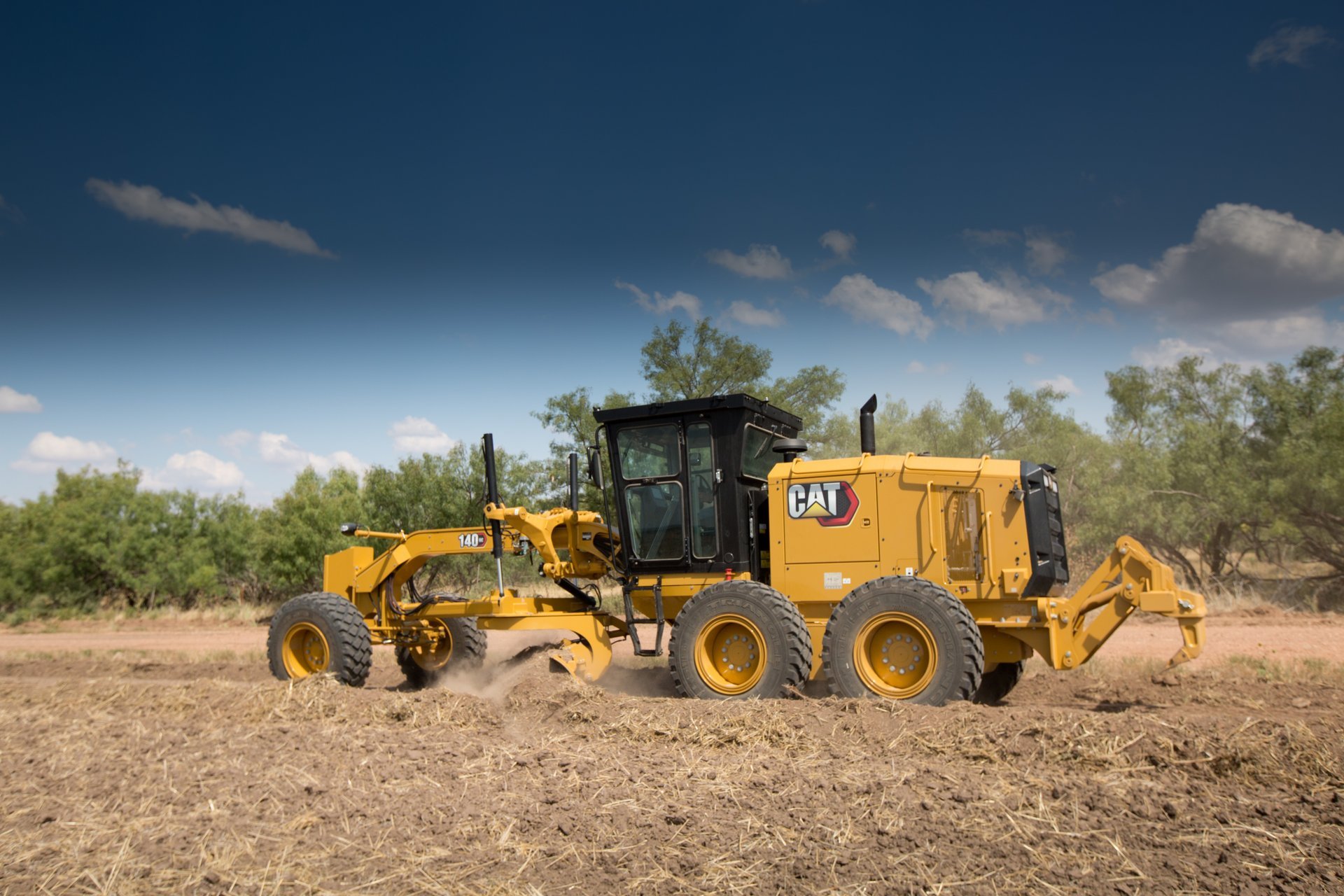

CAT 140 GC

OVERVIEW
—

The new Cat® 140 GC motor grader combines performance with cost efficient owning and operating. Servicing the machine is easy with grouped filter locations. Comfort options, including a heating/cooling system or air suspension seat, keep you productive throughout the day.



LOW COST-PER-HOUR OPERATION

EXTENDED MAINTENANCE CYCLES AND DEMAND FAN KEEP YOUR OVERALL COSTS DOWN.

CAB DESIGNED FOR COMFORT

BOOST PRODUCTIVITY AND EFFICIENCY WITH CAB COMFORT OPTIONS.

PERFORMANCE YOU NEED

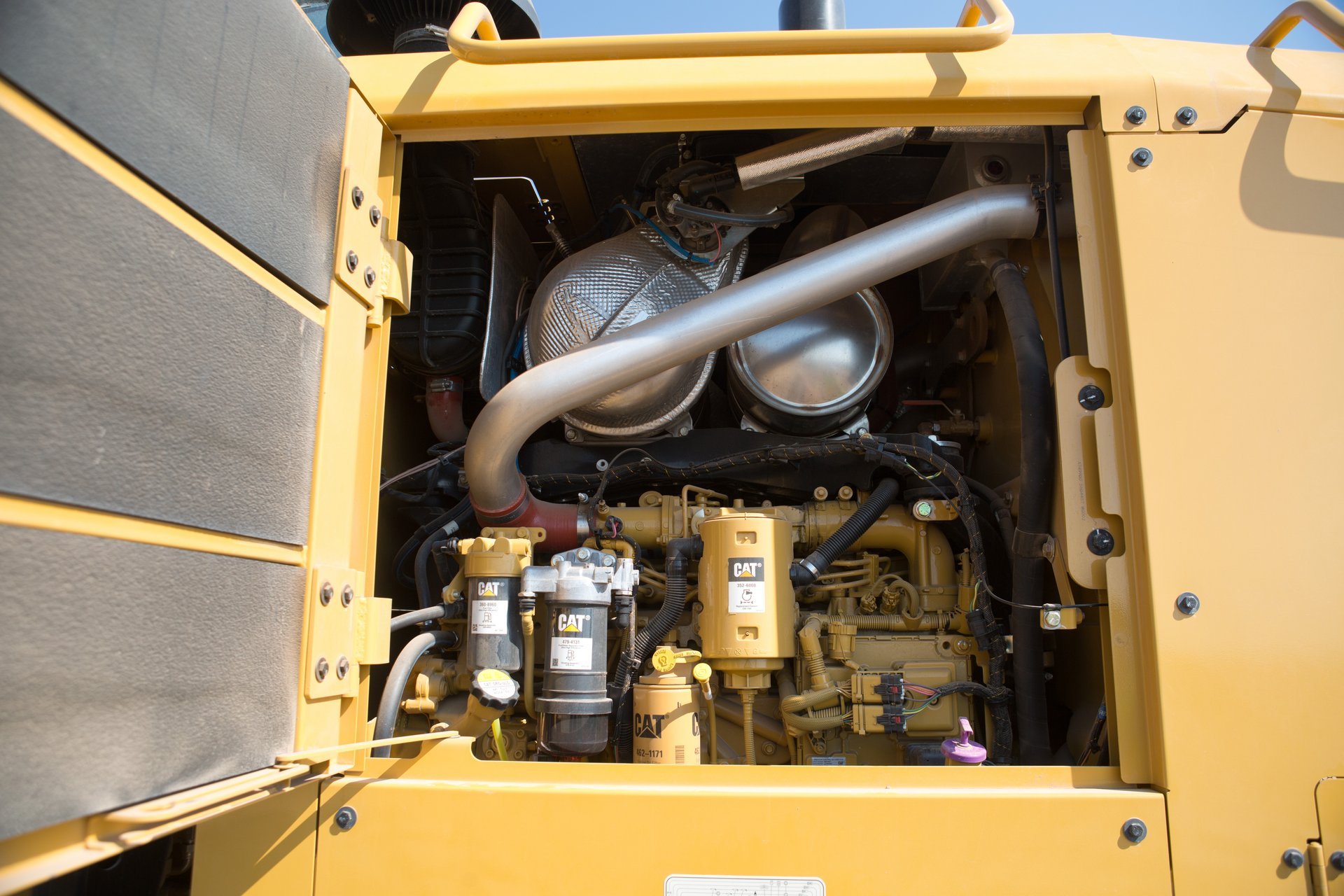

GET PRECISE, CONSISTENT BLADE MOVEMENT WITH THE CAT C7.1 ENGINE, HYDRAULIC SYSTEM, AND CONTROLS.

PRODUCT SPECIFICATIONS FOR CAT 140 GC

—

Net Power Range (Tier 3)131 kW
Displacement7.01 l
Bore105 mm
Stroke135 mm
Engine ModelCat 7.1
Note (1)Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Torque - ISO 9249889 N·m
Standard Capability43 °C
Note (4)The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes.
Derating Altitude4500 m
Number of Cylinders6
EmissionsU.S. EPA Tier 3/EU Stage IIIA
Note (3)Power as declared per ISO 14396
Note (2)Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.
Torque Rise - ISO 929440%
Engine RPM2,200
Weight*17390 kg
NoteTypically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, ROPS closed cab, rear ripper/scarifier, 4.3 m (14 ft) blade, 17.5-25 MP tires on multi-piece rims and other equipment.
Blade Width3.7 m
Throat Clearance112 mm
Blade Height509 mm
End Bit152 mm
Cutting Edge Width152 mm
Arc Radius413 mm
Circle Drive without Slip Clutch1.5 l
Circle Drive with Slip Clutch7.5 l
Transmission18 l
Cooling System10.6 gal (US)
Hydraulic System45 l
Fuel Tank297 l
Engine Crankcase21 l
Moldboard Side Shift Left663 mm
Maximum Depth of Cut735 mm
Moldboard Side Shift Right512 mm
Maximum Shoulder Reach Right1928 mm
Maximum Lift Above Ground480 mm
Circle Center Shift Left752 mm
Maximum Shoulder Reach Left1764 mm
Blade Tip Range Backward5
Circle Center Shift Right728 mm
Blade Tip Range Forward40
Width2428 mm
Maximum Height3839 mm
Length of Machine*10322 mm
Note*Typically equipped with push block and ripper.
NoteThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430).The system contains 2 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes.The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430).The system contains 2 kg of refrigerant which has a CO2 equivalent of 2.86 metric tonnes.
