Jaw Crushers

Finlay® tracked Mobile Jaw Crushers are renown for their capabilities in the reduction and sizing of aggregates for construction materials and also recycling construction waste. The Finlay range of Jaw Crushers are designed to meet the toughest demands of primary crushing applications with their impressive power, reliability and proven performance.

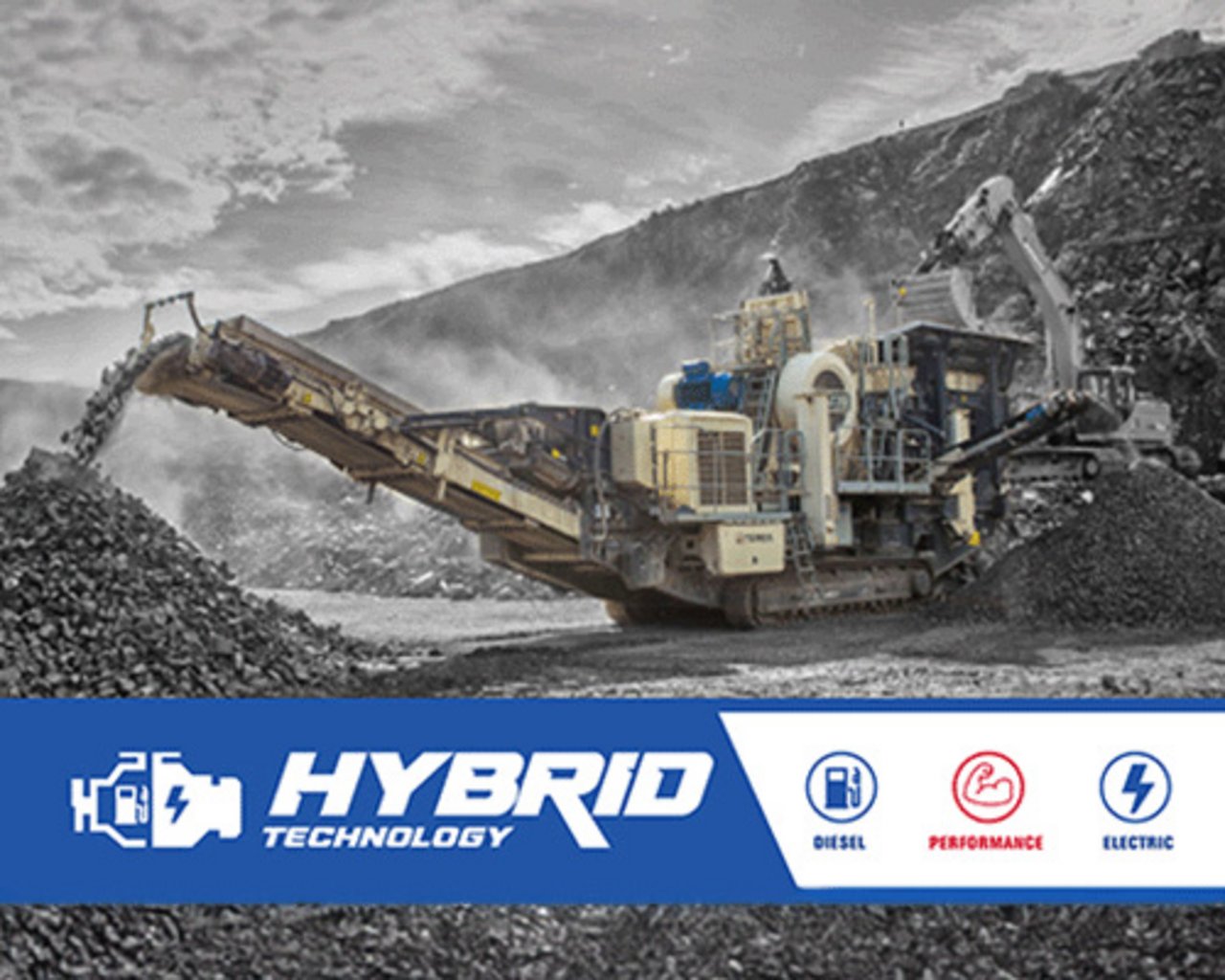

LJ-130 Hybrid

The Finlay® LJ-130 hybrid mobile jaw crusher is the largest mobile jaw crusher in our range and has been developed for large-scale quarry and mining operations.The plant’s electrically driven power systems provide significant cost advantages and environmental efficiencies. The machine features a robust Terex 1300 x 1000mm (51” x 39”) single toggle jaw crusher.

Net Engine PowerTier 3 - CAT 403kW | Tier 4 Final / Stage V - Scania 410kW
Inlet Opening1300 x 1000mm
Operating Weight123,000kg
Transport DimensionsHeight 4.25m | Width 3.4m | Length 17m
Working DimensionsHeight 6.4m | Width 7.3m | Length 22m

Specification

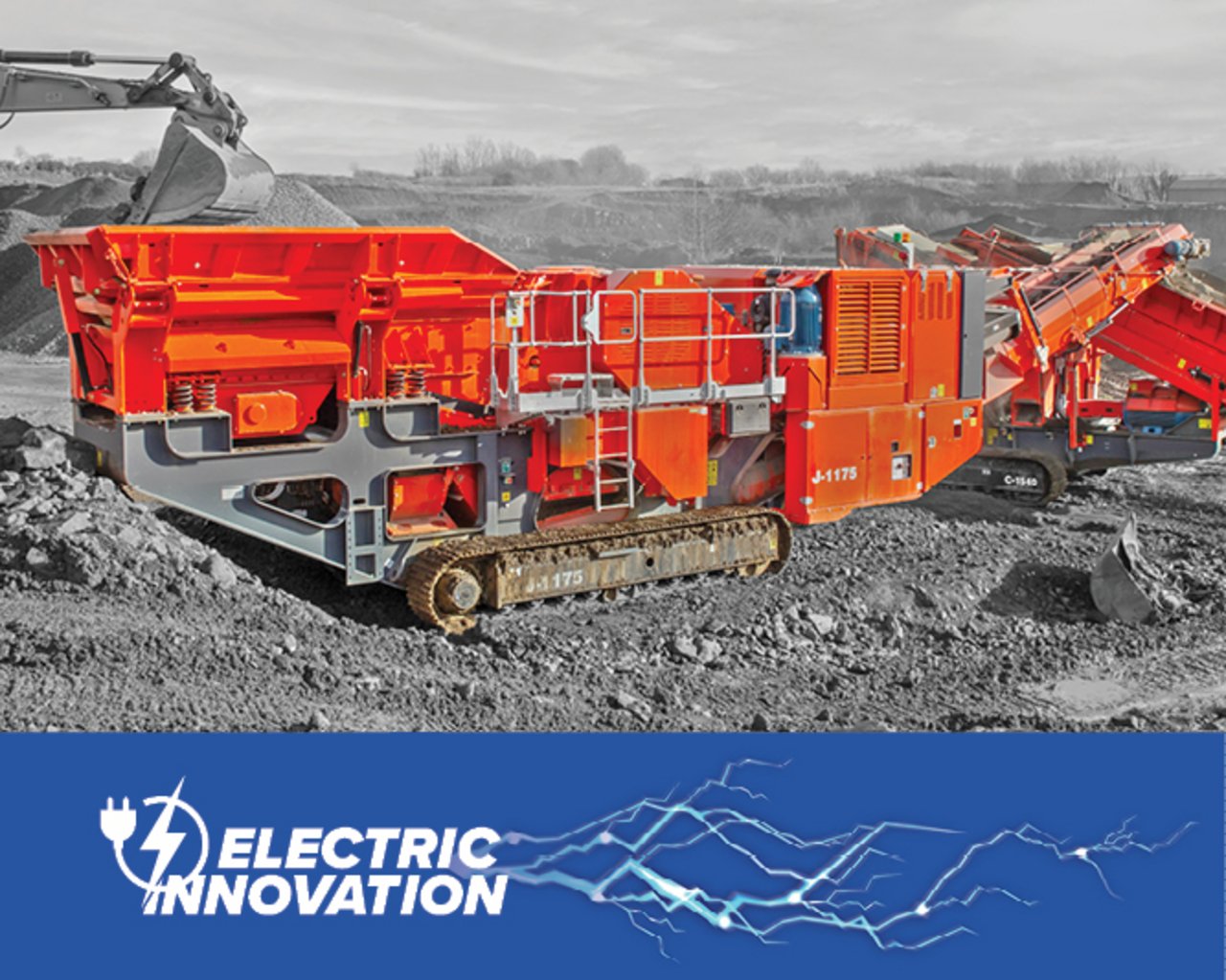

J-1175 Electric

The Finlay® J-1175 electric jaw crusher has been designed to meet the needs of customers for whom electricity is the preferred power source. The intelligent and flexible design of the power pack enables the machine to be connected directly to the grid or a genset electrical power source.

Net Engine PowerCAT C4.4 97kW
Inlet Opening1070mm x 760mm
Operating Weight54,300kg
Transport DimensionsHeight 3.5m | Width 2.9m | Length 14.5m
Working Dimensions

Specification

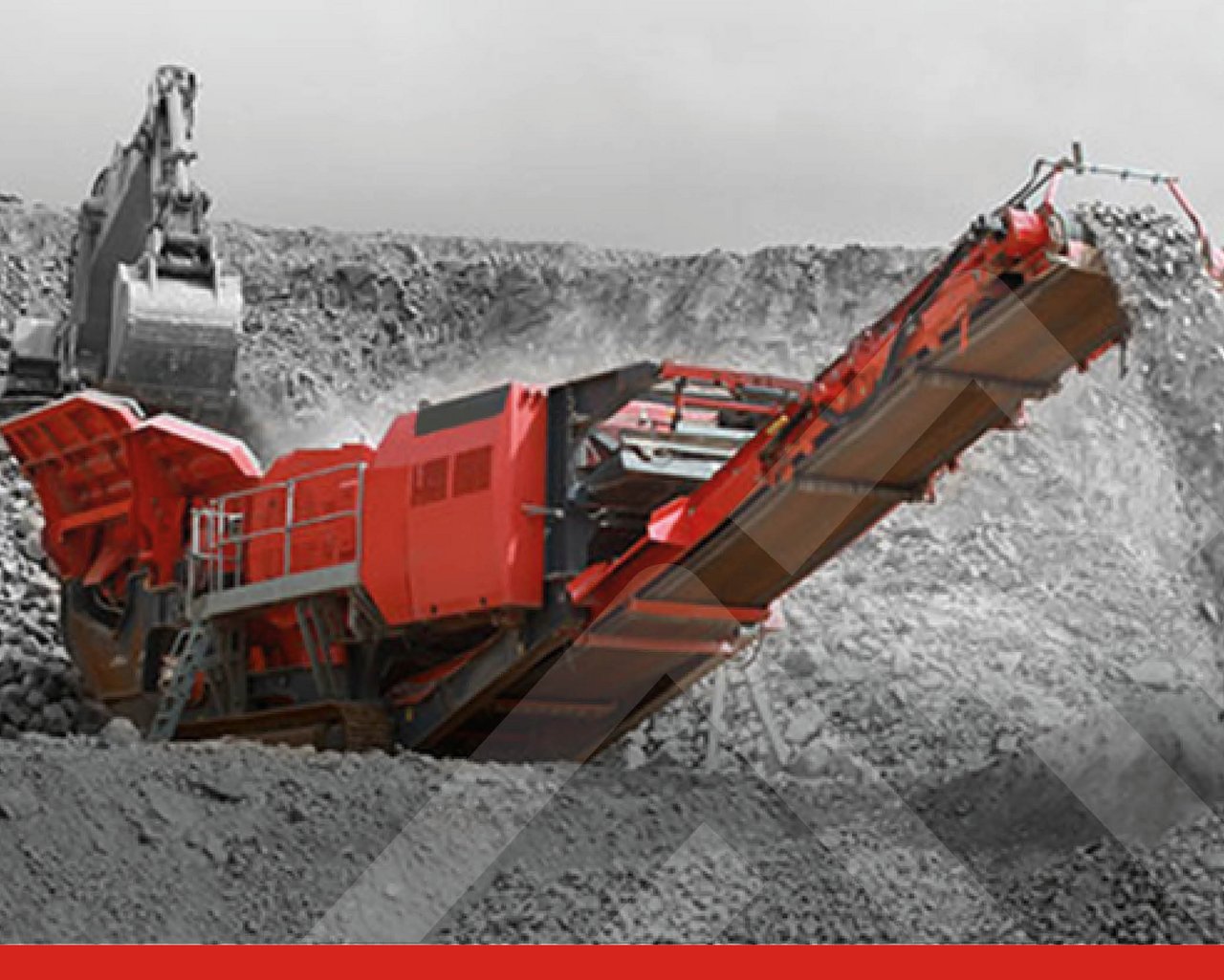

J-1480

The Finlay® J-1480 tracked mobile crusher incorporates the Finlay® Jaques JW55 single toggle jaw which boasts a throughput capacity up to 750mtph depending on application and material. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Finlay® 1415mm x 820mm (55” x 32”)single toggle jaw crusher.

Net Engine PowerTier 3 - CAT 328kW | Tier 4 Final / Stage V - Scania 331kW
Inlet Opening1415mm x 820mm
Operating Weight79,450kg
Transport DimensionsHeight 3.8m | Width 3.38m | Length 18m
Working DimensionsHeight 4.6m | Width 6.7m | Length 20.7m

Specification

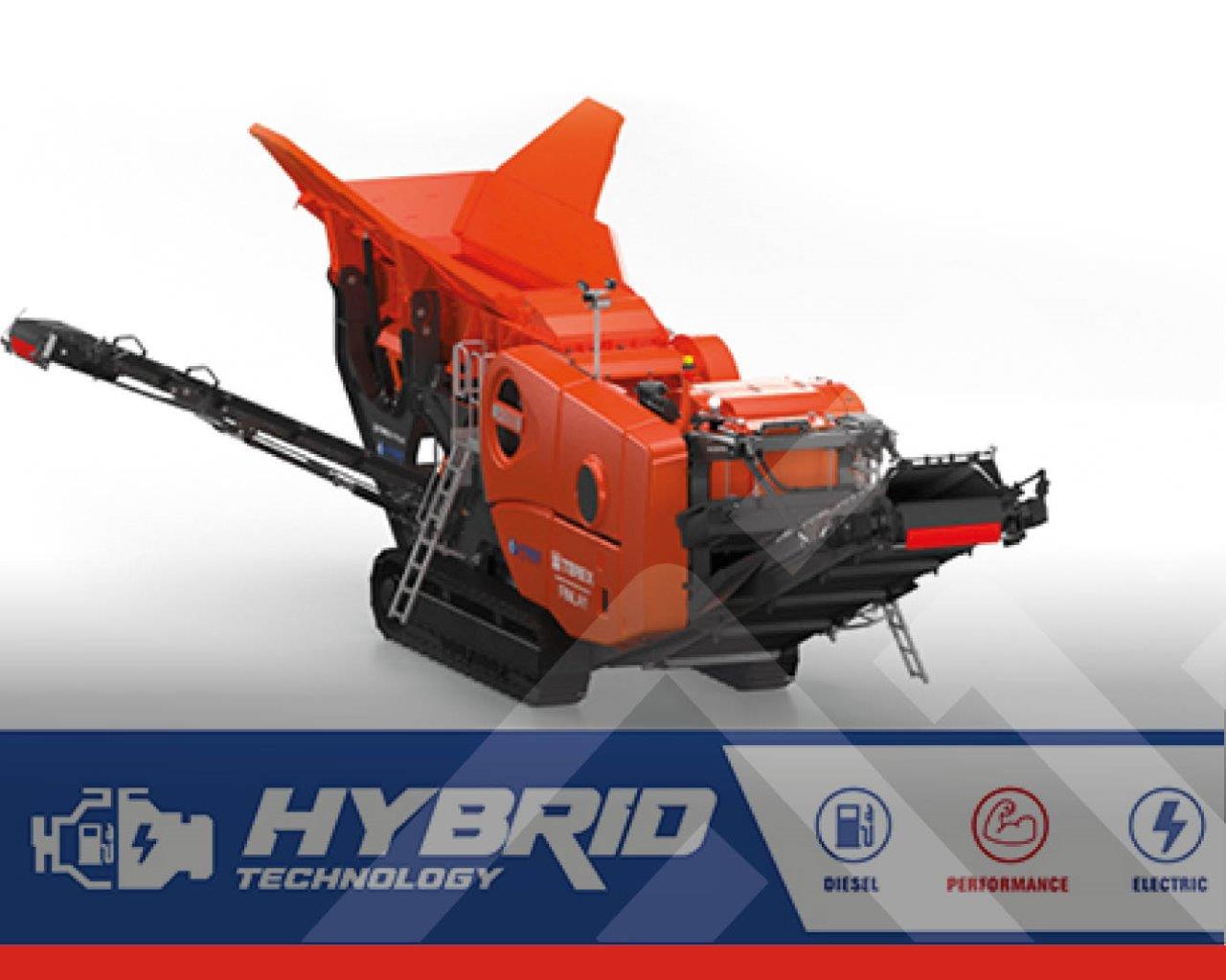

J-1280 Hybrid

The hybrid Finlay® J-1280 mobile jaw crusher offers operators the flexibility to power the plant either by an onboard genset powerpack configuration or connected to an external power source. Both power options provide operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant. The machine is fitted with a high powered alternator that generates sufficient energy that can be used to power downstream screening plants or stockpile conveyors further improving overall fuel consumption and efficiencies of production trains. The machine features a robust Terex 1200mm x 820mm (47” x 32”) electrically driven single toggle jaw crusher.

Net Engine PowerTier 2 - Scania 331kW | Stage V - Scania 331kW
Inlet Opening1200mm x 820mm
Operating Weight75,060kg * est
Transport DimensionsHeight 3.8m | Width 3.12m | Length 17.1m
Working DimensionsHeight 4.49m | Width 8.06m | Length 17.1m

Specification

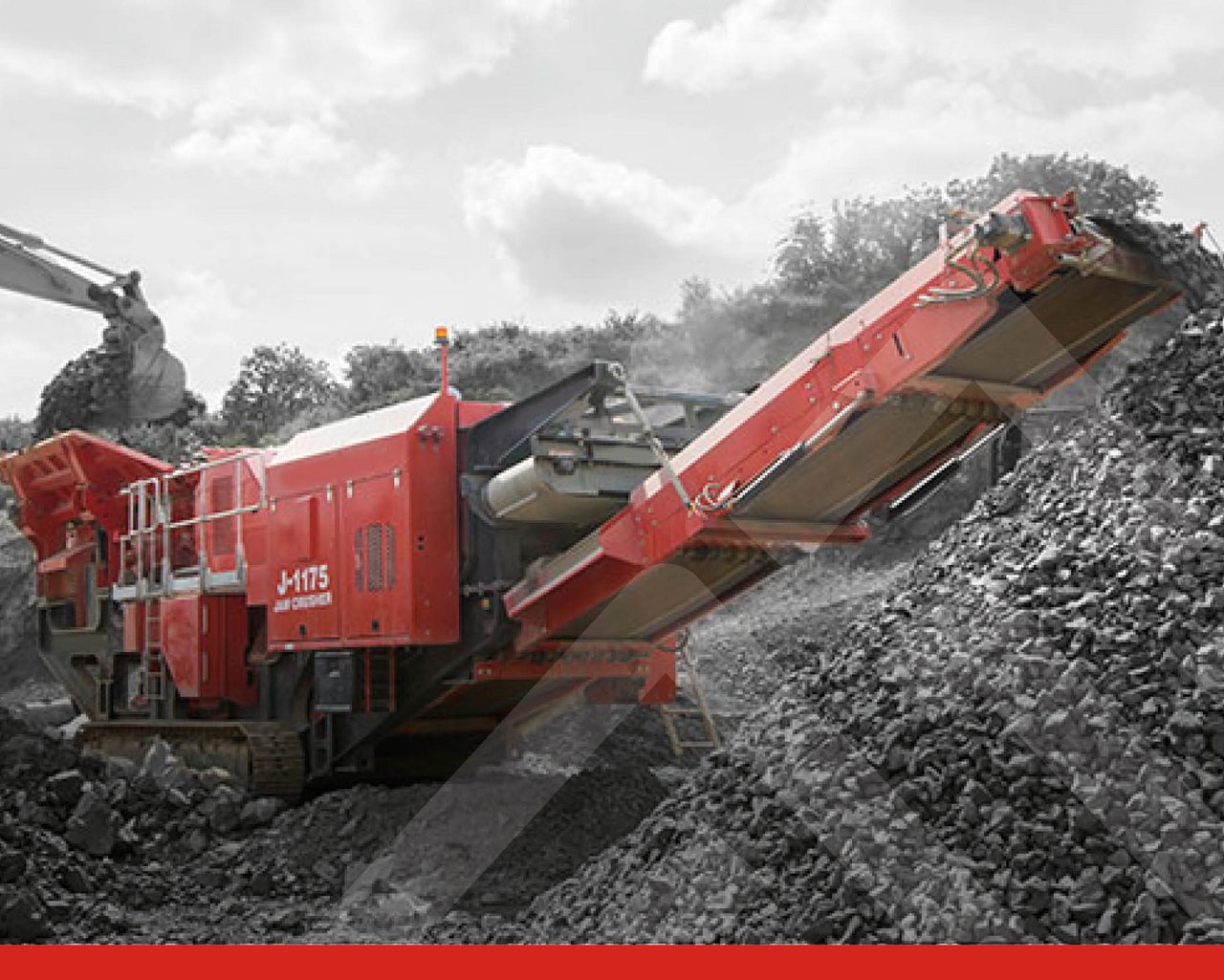

J-1175

The Finlay® J-1175 tracked jaw crusher is a high performance and aggressive mobile crusher. The machine incorporates a heavy duty variable speed VGF and integrated prescreen to give optimum performance in quarrying, mining, demolition and recycling applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1070mm X 760mm (42” x 30”) driven single toggle jaw crusher.

Net Engine PowerTier 3 - CAT 261kW | Tier 4 Final / Stage V - Scania 257kW
Inlet Opening1070mm x 760mm
Operating Weight51,300kg
Transport DimensionsHeight 3.5m | Width 2.9m | Length 14.5m
Working DimensionsHeight 3.9m | Width 20.4m | Length 15.7m

Specification

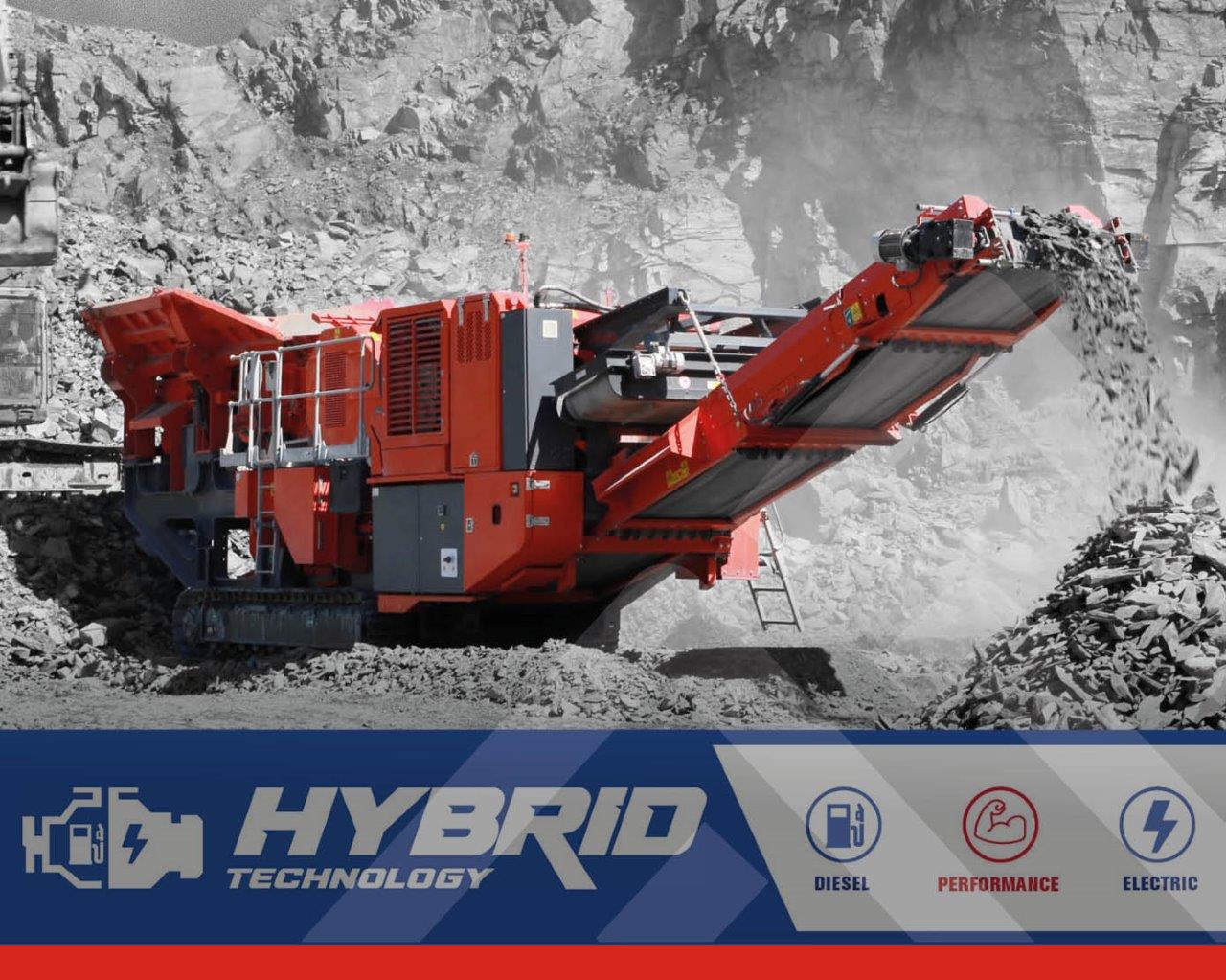

J-1175 Hybrid

The Hybrid Finlay® J-1175 mobile jaw crusher offers operators the flexibility to power the plant either by mains electric connection or the onboard genset powerpack configuration. Either power option presents operators with significant power, servicing and maintenance cost savings in direct comparison to a diesel/hydraulic powered plant. The machine is fitted with a high powered alternator that generates sufficient energy that can be used to power downstream screening plants or stockpile conveyors further improving overall fuel consumption and efficiencies of production trains. The machine features a robust Terex 1070mm X 760mm (42” x 30”) electrically driven single toggle jaw crusher.

Net Engine PowerTier 2 Equivalent - Scania 261kW | Stage V - Scania DC9 257kW
Inlet Opening1070mm x 760mm
Operating Weight54,300kg
Transport DimensionsHeight 3.5m | Width 2.9m | Length 14.5m
Working DimensionsHeight 3.9m | Width 6.2m | Length 15.7m

Specification

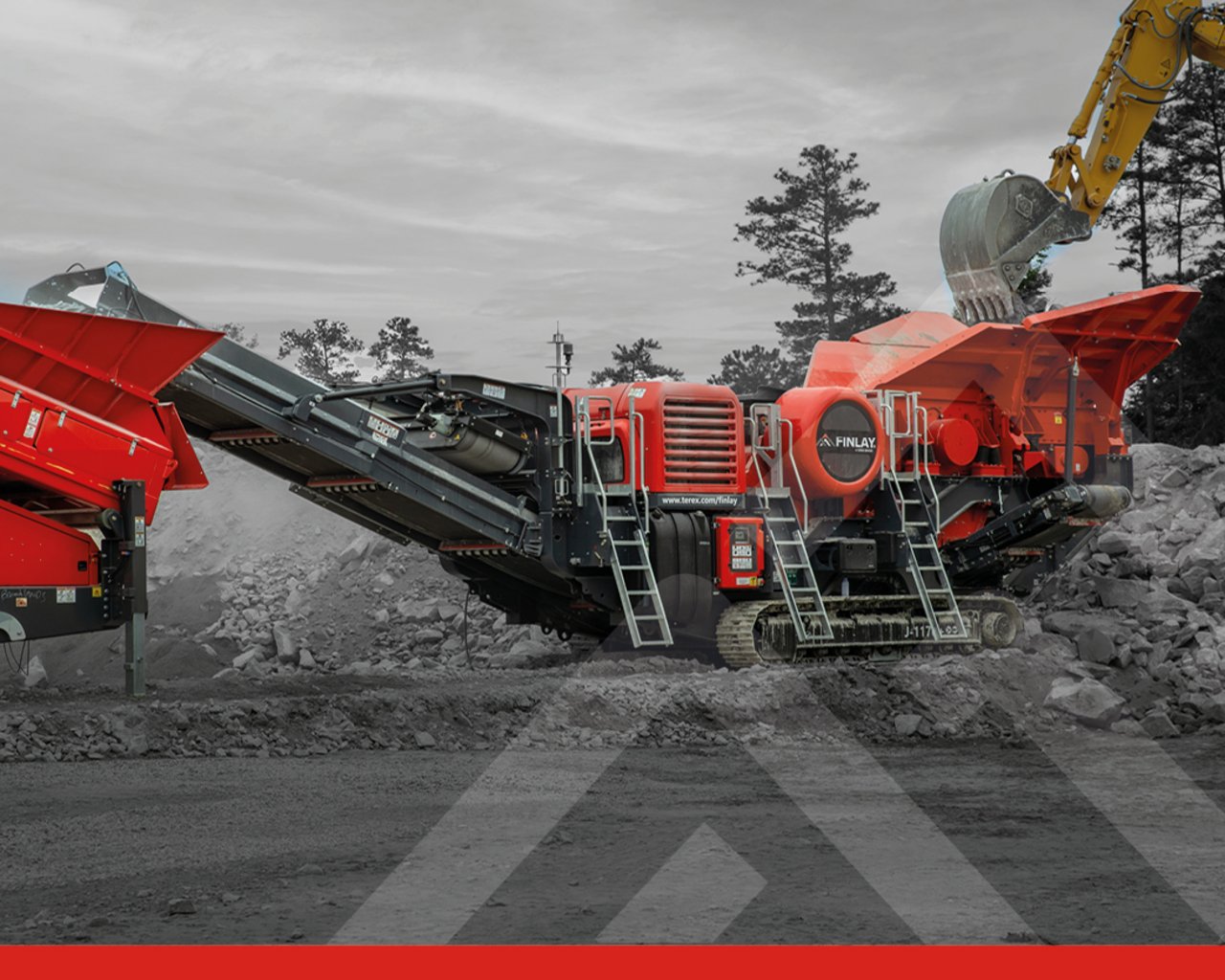

J-1170+

The Finlay® J-1170+ portable jaw crusher provides high production capacity with large reduction ratios. The jaw chamber can be configured specifically for either processing construction demolition debris or quarrying applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1100mm X 700mm (44” x 28”) chamber single toggle jaw crusher.

Net Engine PowerTier 3 CAT 261kW | Tier 4 Final / Stage V - Scania 257kW
Inlet Opening1100mm x 700mm
Operating Weight48,900kg
Transport DimensionsHeight 3.4m | Width 2.9m | Length 14.5m
Working DimensionsHeight 4m | Width 6.04m | Length 16.1m

Specification

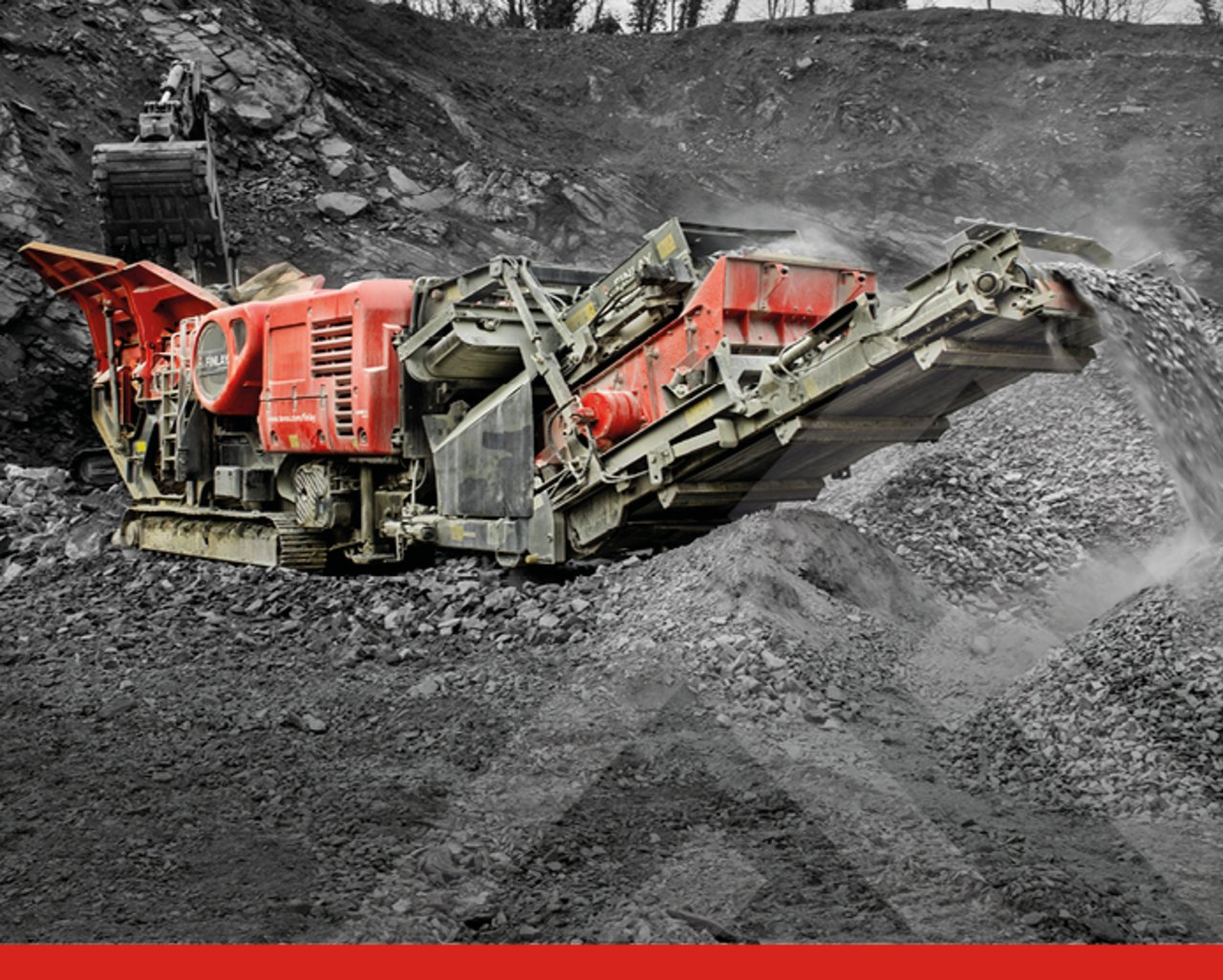

J-1170AS+

The Finlay® J-1170AS+ provides the flexibility of a jaw crushing and screening plant on one machine. This highly productive machine features a detachable on-board single deck 2.44m x 1.52m (8’ X 5') sizing screen. The after-screen system can be removed quickly allowing the operator to use as a standard unit, giving the operator versatility depending on the application. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. The machine features a robust Terex 1100mm X 700mm (44” x 28”) chamber single toggle jaw crusher.

Net Engine PowerTier 3 / Stage IIIA - Caterpillar C9 261kW
Inlet Opening1100mm x 700mm
Operating Weight54,600KG
Transport DimensionsHeight 3.4m | Width 2.95m | Length 16m
Working DimensionsHeight 4.01m | Width 6.04m | Length 17.16m

Specification

J-1160

The Finlay® J-1160 mobile jaw crusher is a primary crusher for aggregates production as well as concrete and asphalt recycling applications. The machine has hydrostatic drive which offers reversible operation for clearing blockages and demolition applications. It is designed to be easy to transport between sites and quick to set up and tear down. The machine features a robust Terex 1000mm x 600mm (40” x 24”) single toggle jaw crusher.

Net Engine PowerTier 3 - John Deere 212kW | Tier 4 Final / Stage V - CAT 205kW
Inlet Opening1000mm x 600mm
Operating Weight35,350kg
Transport DimensionsHeight 3.5m | Width 2.6m | Length 15.7m
Working DimensionsHeight 3.9m | Width 4.6m | Length 15.5m

Specification

J-960

The Finlay® J-960 is the most compact tracked jaw crusher in the Terex® Finlay range. This aggressive and versatile crusher is ideal for small scale on-site crushing of aggregates and construction demolition waste. The direct drive jaw chamber is fitted with an unblock feature that maximizes uptime. The machine features the robust Terex 900mm x 600mm (35” x 24”) direct driven single toggle jaw crusher.

Net Engine PowerTier 3 John Deere 126kW | Tier 4 Final / Stage V - CAT 129kW
Inlet Opening900mm x 600mm
Operating Weight28,000kg
Transport DimensionsHeight 3.2m | Width 2.4m | Length 12.4m
Working DimensionsHeight 3.2m | Width 3.8m | Length 12.4m

Specification
